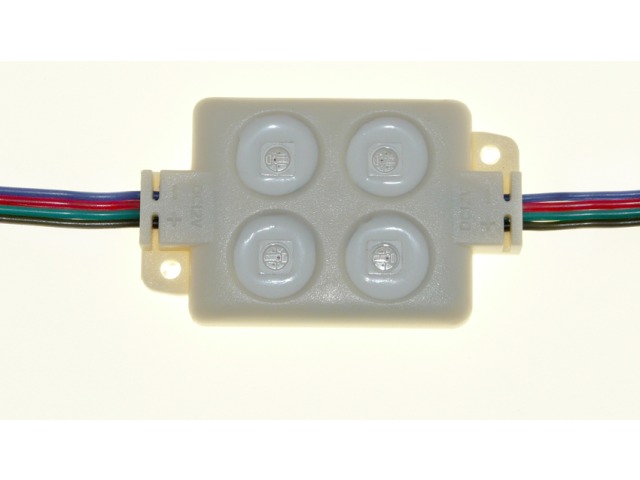

1 Watt Slim RGB (Colour Changeable) (12vdc) Constant Current LED Module

Product Code: 1wRGBLEDM-SL

£3.95 inc VAT (£3.29 ex VAT)

Stock Level: In-Stock

Quantity :
Quantity Prices:
5 for£3.75 each
10 for£3.65 each
20 for£3.50 each
50 for£3.30 each
100 for£3.05 each

Product Description

These Slim and Bright Modules were originally designed for Lightboxes and Illuminated Signs.

However they are also ideal for a wide range of other lighting applications such as shelf and alcove lighting, model illumination, vehicle interior lighting etc.

Not to be confused with cheap Chinese Modules, these are designed for a long lifetime, and provided with a 3 Year Commercial Use Warranty.

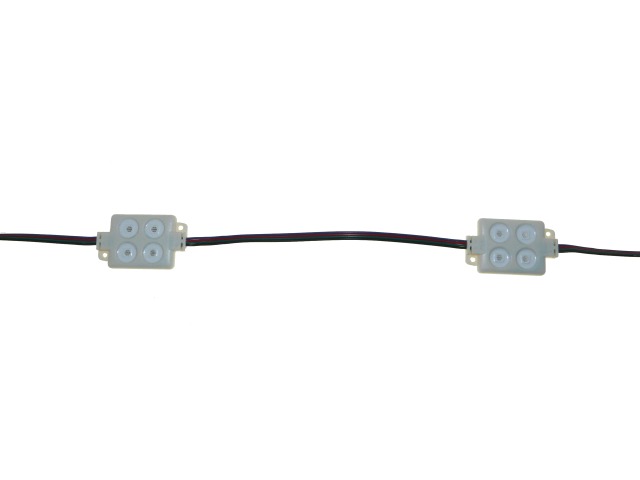

They are manufactured in a chain of 20 Modules but can be cut down to any number of modules required even a single module, the wire between the modules can also be easily extended if required to a few meters or several meters.

The on-board Voltage and Current Regulating Electronics makes them stable, highly reliable and suitable for use on 12vdc and even vehicle where voltages can reach 14.4 volts.

The electronics ensures that any increase in voltage does not result in an increased current to the LEDs resulting in a long lifetime with very little deterioration in brightness.

The on-board circuitry gives the Modules uniform brightness at all voltage levels.

Pre-fitted with Self-Adhesive Pads for fast installation, they also have a screw mounts on either side for securing in place in more harsh environments such as outdoors.

Without a colour controller they are capable of displaying 7 colours; White, Red, Green, Blue, Yellow, Turquoise, and Magenta. This is done simply by connecting the 3 coloured wires according to the colour you want to display.

For a vast array of colours with millions of combinations including whites & warm whites we recommend using a colour controller such as Flexidriver, or Lightbox. Please see further down this page.

Product Specification

Voltage Range10-15vdc
LED BrandEpistar with PLC Completion
Module Dimensions55mm (L) x 34mm (W) x 6.25mm (H)
Approx. Current Per Module143ma @ 12vdc)
Wire Length between Module175mm
Length of a chain of 20 ModulesApprox 3.9M
Warranty3 Years
CertificationsCE, RoHS
