Product Description

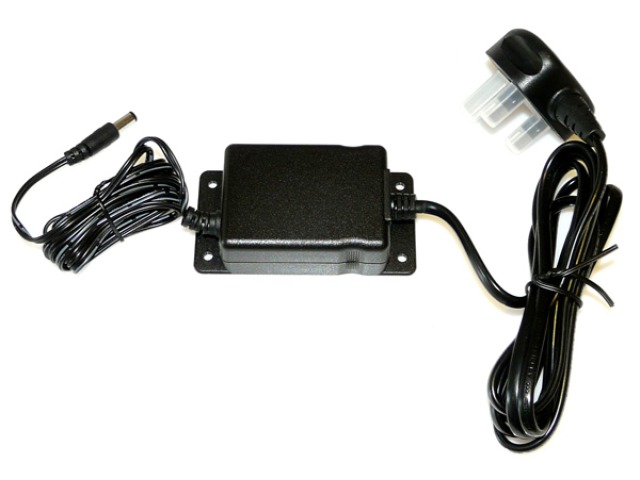

1A 12vdc In-Line Switchmode Power Supply.
A Free DC Connector is included allowing easy connection.

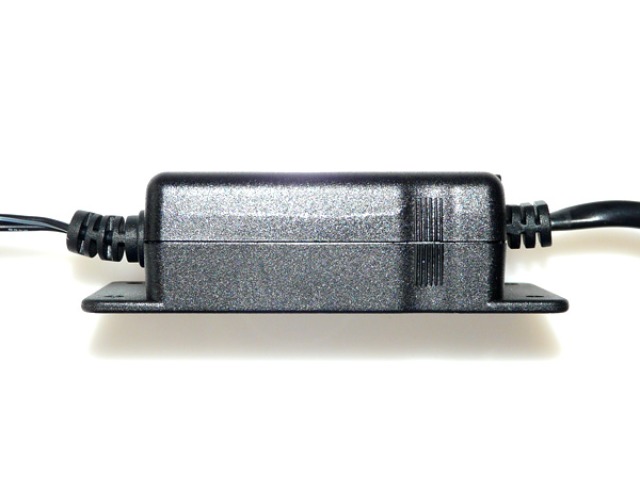

A flange is built onto the Power Supply allowing the power supply to be fastened into place.
The Power supply has a mains lead with a pre-fitted U.K Plug. The plug can be removed for installations requiring on and off switching via a light switch (this should be performed by a qualified electrician).
Use only in a Dry Location
Product Specification
| Rated Output Voltage | 12Vdc |
| Current Max. | 1A |
| Current Min. | 0A |
| Power (watts) | 12W |
| Full Input Voltage Range | 90 - 264Vac |

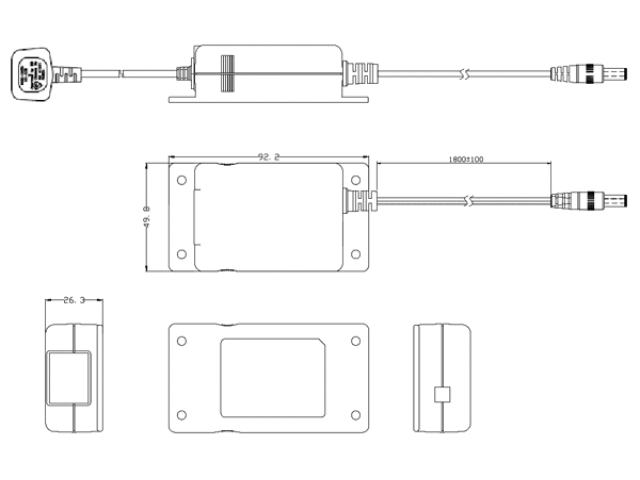

| Dimensions including flange | 93mm (L) x 50mm (H) x 27mm (W) |
| 12vdc Lead Length | 1.8M |
| Mains Lead Length | 1.8M |
| Load Regulation | + / -5% |
| Approvals | CE, RoHS, TUV, UL, FCC, GS EMI; VCCI class B , FCC class B , CISPR 22 class B |
