24vdc 1A (24w) Waterproof (IP67) Power Supply

Product Code: LW-ECS-24-V024

£15.00 inc VAT (£12.50 ex VAT)

Stock Level: In-Stock

Quantity :

Automatic Quantity Discount

PLEASE NOTE: A waterproof Junction box or waterproof connectors must be used to connect the Input of the PSU to the Mains supply, and also for the output side of the PSU to the Controller or LEDs.

Full Description
Description Specification

Product Description

A compact LED Driver, which is ideal for powering short lengths of our 24vdc LED Strip.

Product Specification

VoltageMains 220-240vac
TypeConstant Voltage PSU
Output voltage24vdc
Maximum Current1A
Power24 Watts
Power Factor0.9
OverloadAuto-Recovery
Short CircuitAuto-Recovery
Over-VoltageAuto-Recovery
IP RatingIP67 (Waterproof)
Weight180g

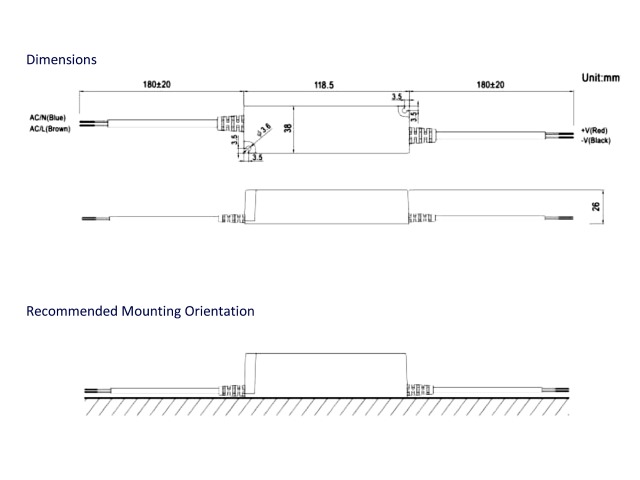

Dimensions121mm x 37mm x 28mm
ConnectionScrew Terminal on I/P & O/P
Lifetime>30,000 hours at TC max (40°:C)
CertificationsCE, SELV, RoHS
Safety StandardEN 61347-1, EN 613347-2-13,

EN55015, EN61000-3-2, 3, 4,5, 6,11,
EN61547
EMI StandardMeets Emissions to EN5015
