Wi-Fi Lightbox Colour Controller (v3) - £65.00
Ampbox for use with Lightbox (v3/v4) - £29.50Product Description

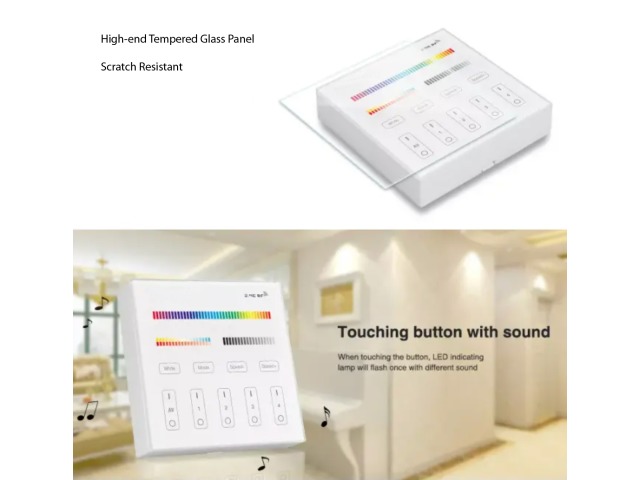

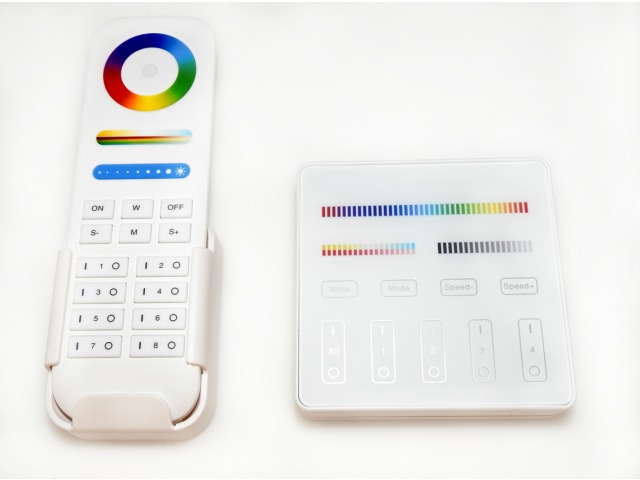

Control our RGB or RGBW Strips, and other Mood Lighting LEDs via the wireless Glass Panel, App, or the Remote Control Handset. All arre included as a package.

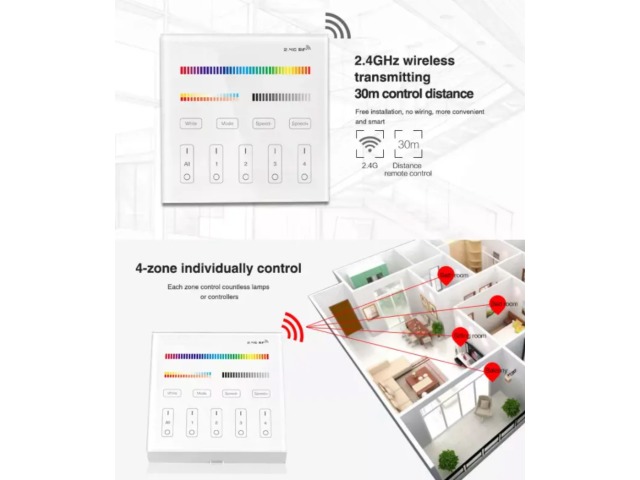

The system has up to 4-Zones, byt the use of an additional Receiver. The Freely downloadable App makes all controls available through your Smartphone or Tablet.

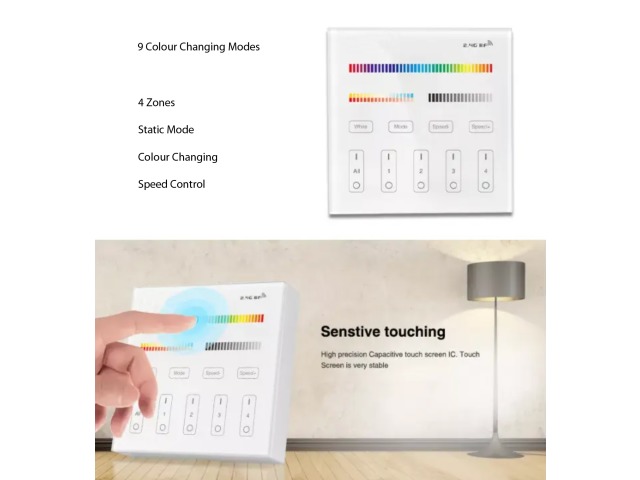

A wide range of colours including White, Warm White, Pastels, and Vivid Colours are possible due to the incremental steps within the control receiver.
Product Specification

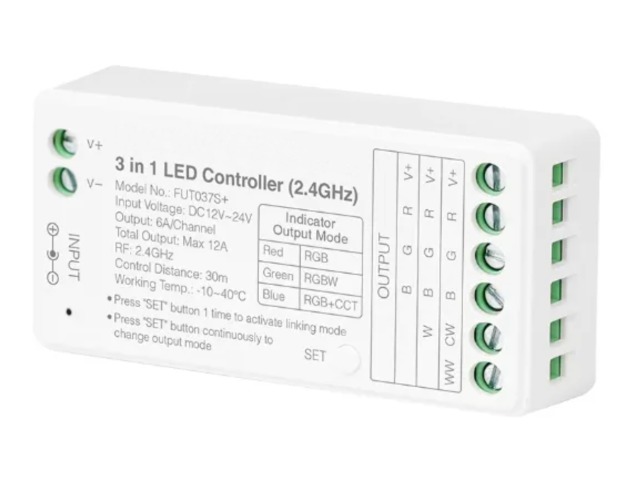

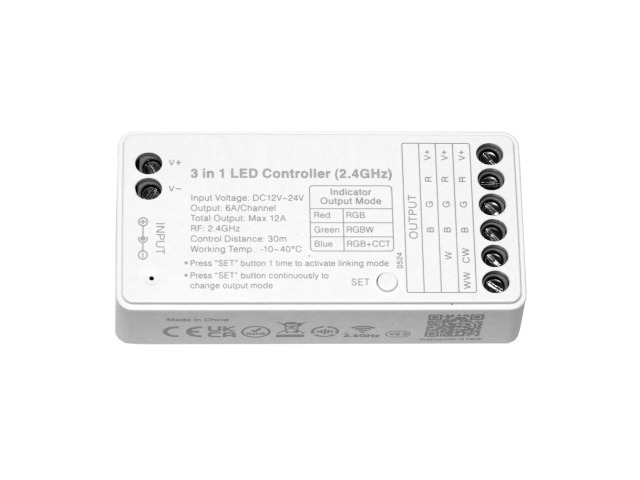

| 4 Zone Remote Control Receiver | Specs |
| Control Methods | Glass Panel Remote Remote Handset APP |
| Voltage Range | 12-24vdc |
| Colours | 16.7 Million (RGB) 4.3 Billion (RGBW) |
| Max Output Current | 12A@24vdc |
| Maximum Load | 288w |
| Frequency | 2.4Ghz |
| Operating Distance | 30 Metres |
| Operating Temperature | -10 - 40 Degrees C |
| Product Weight | 41g |
| Certification | CE UKCE RoHS |

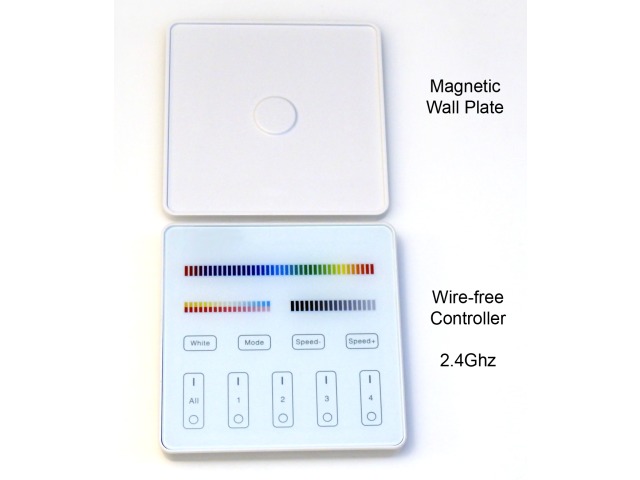

| 4 Zone Remote Control | Specs |
| Colours | RGB/W CCT |
| Operating Distance | 30 Metres |
| Operating Temperature | -20 - 60 Degrees C |
| Voltage | 3V (2 x AAA Battery) |
| Transmission Frequency | 2400-2483.5MHz |
| Modulation Method | GFSK |
| Transmitting Power | 6dBm |
| Standby power | 20uA |
| Remote Size size | 86 × 86 × 19mm |
| Product Weight | 92g |

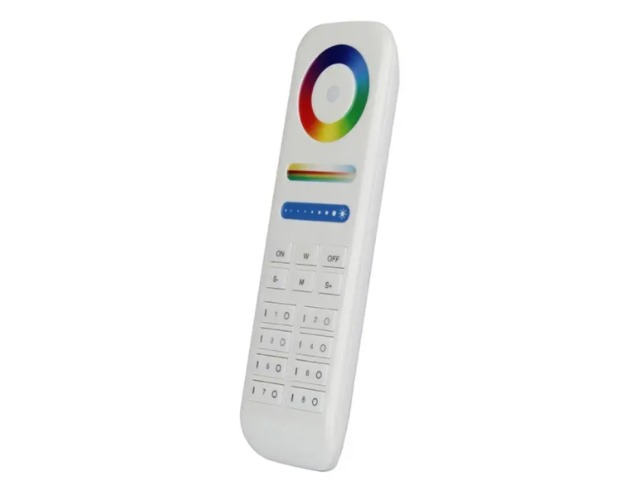

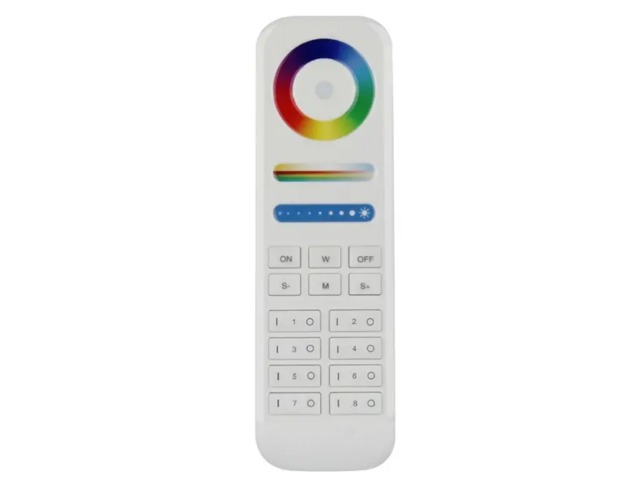

| Remote Handset | Specs |
| Colours | RGB CCT |
| Operating Distance | 30 Metres |
| Operating Temperature | -20 - 60 Degrees C |

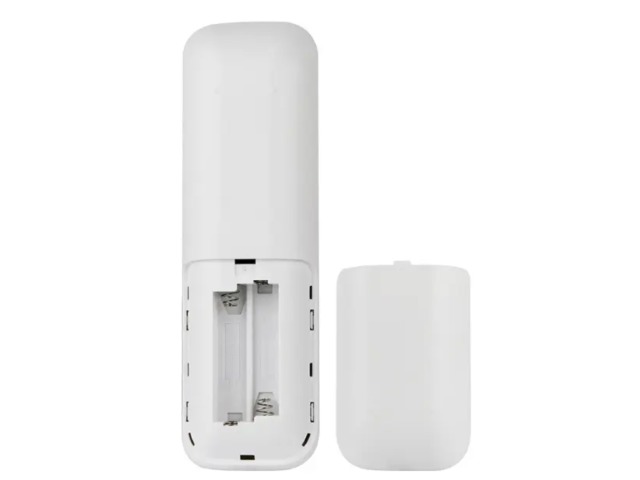

| Voltage | 3V(2 x AAA Battery) |
| Transmission Frequency | 2400-2483.5MHz |
| Modulation Method | GFSK |
| Transmitting Power | 6dBm |
| Standby power | 20uA |
| Remote Size size | 47 × 19 × 153mm |
| Product Weight | 92g |
