Edge Lit Flexible LED Strip

Product Code: EL-LED-S

£22.00 inc VAT (£18.33 ex VAT)

Stock Level: In-Stock

Select Colour
Quantity :

2 Meter Length

Full Description View accessories for this product View Documents

Similar Products

Please choose one of the options below for more details

Product Description

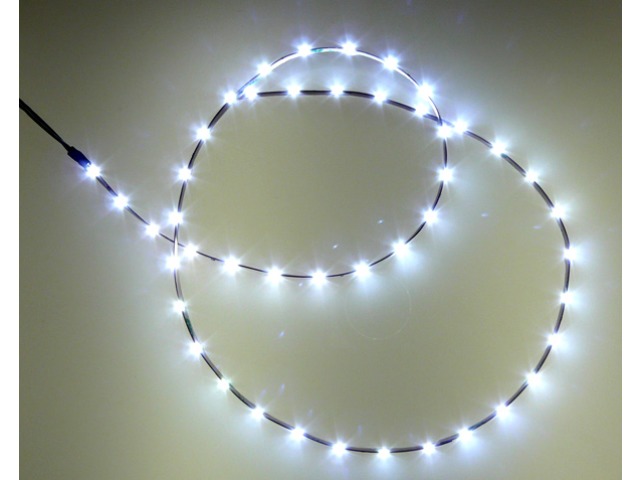

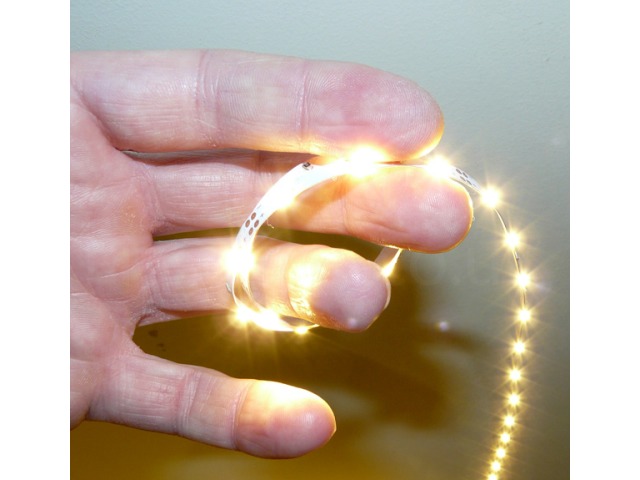

This is Edge Lit Strip, the LEDs are side-facing making it suitable for use to go around corners that forward facing LED Strip cannot follow.

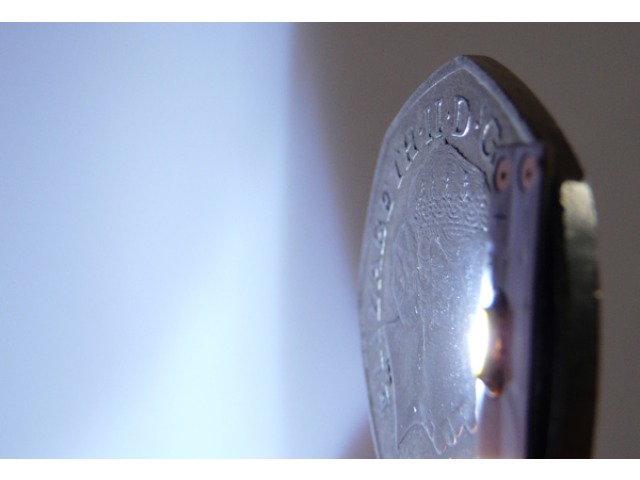

Just 8mm wide and 1.3mm thick!

Ideal for:

  • Fitting into thin routed grooves
  • Edge lighting acrylic.
  • Illuminated Letters or Numbers

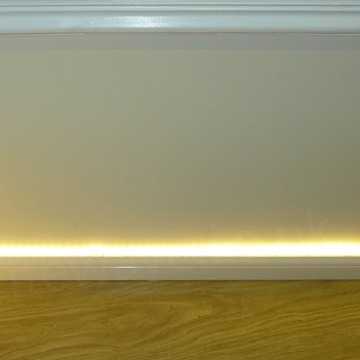

  • Cabinet & Case lighting

The LED Strip is extremely versatile it can be cut every 50mm and has solder pads allowing off-cuts to be re-wired so they can be used again.

3M Self-Adhesive Backing

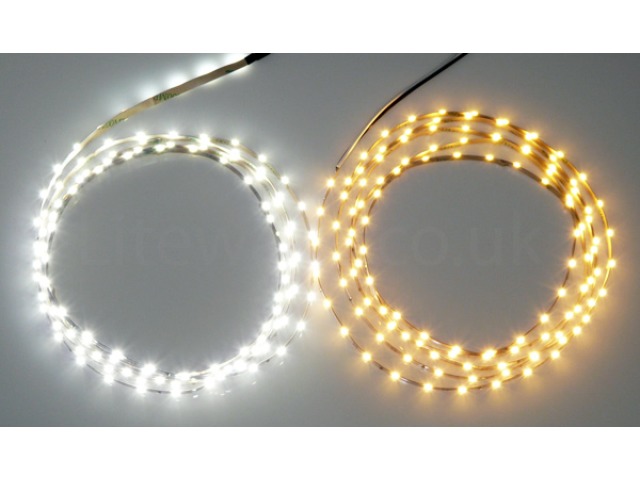

Stocked in 3 Colours:

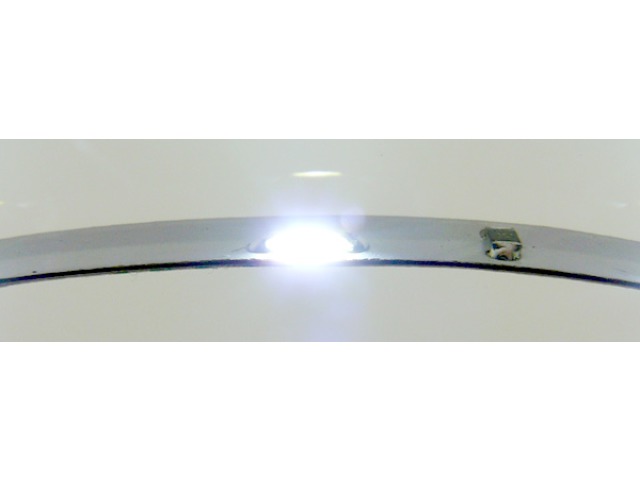

  • White (6000K)

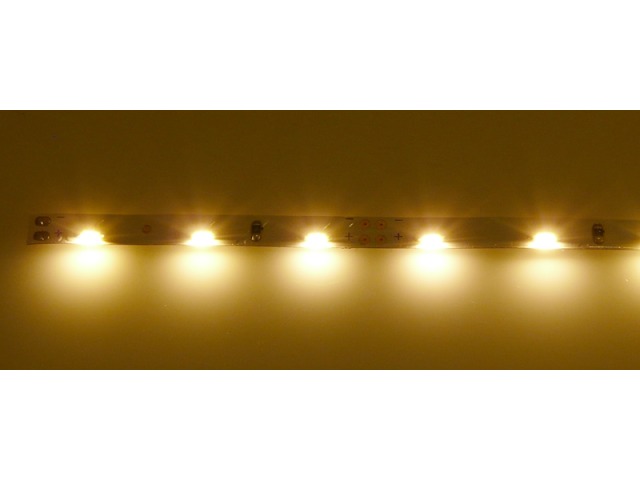

  • Warm White (3000k)
  • Blue

Product Specification

Voltage12vdc
Power4.8 Watts per meter
Dimensions8mm (W) x 1.3mm (D) x 2M (L)
Wire Length Pre-fitted400mm (15") Extendable

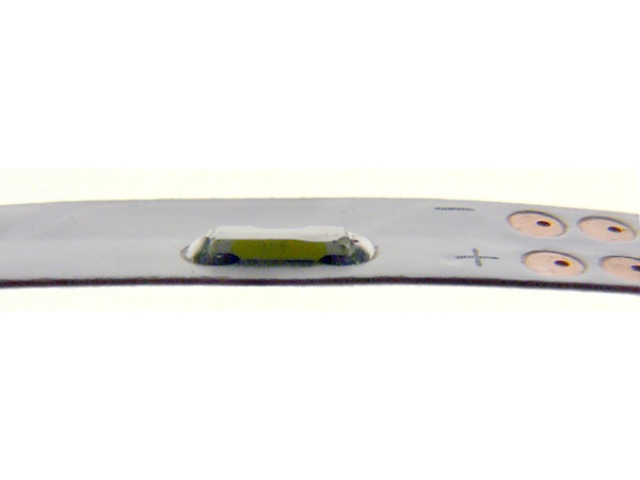

LED TypeSMD
Light Dispersion120°
Current draw per Meter400ma (0.4A)
Light Dispersion140 degrees
Luminous Flux (lm) per M~180
LED Spacing16mm
Cutting Points50mm (2") Intervals
LED Qty60 LEDs Per Meter
DurabilityNon Waterproof
CertificationsRoHS, CE
