Product Description

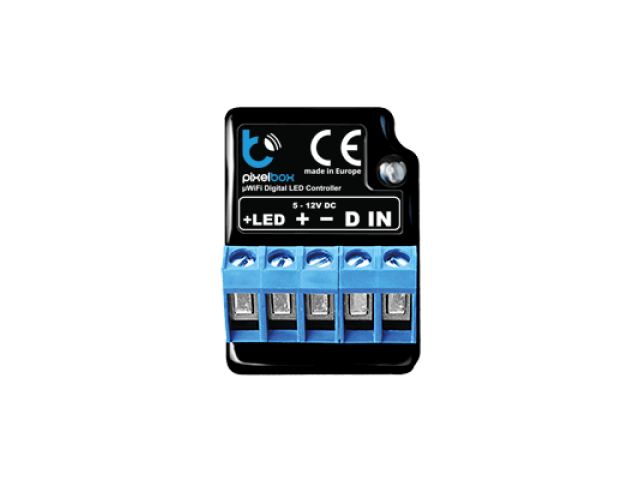

Pixel Box is one of the latest controllers from Blebox. It allos Digital LED Strip to be controlled via phone or tablet anywhere in the world.
For any more than 60w Strip load connection to the Strip using this Controller must be 'passive', that means it supplies Data and Ground only, with a separate connection from a dedicated Power Supply to the Digital Strip taking the load.
Compatible with Alexa
Product Specification
| Voltage | 5 - 12v DC |
| Maximum Load | 60w |
| Minimum Load | 20ma |
| Strip Type | Digital RGB, 5V or 12V (WS2812 / WS2811 - without clock signal) |
| Connection Tech. | Wi-Fi, 2.4 GHz |
| Interface | Web Based |
| Compatibility | Apple Android Windows Phone MS Windows Linux OSX |
| Range | 50M in open space 100m with Access Point 250M with pro booster More limited range inside buildings |
| Operating Temperature | 0 - 40°C |
| Dimensions | 27mm x 37mm x 23mm |
| Certifications | CE, RoHS |
