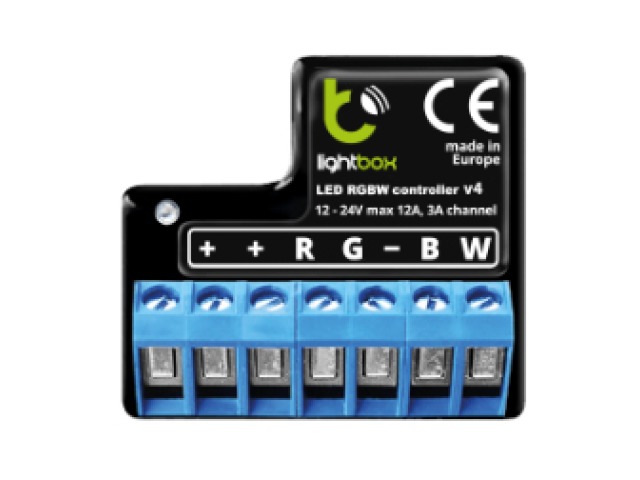

LightBox Smartphone RGB LED Controller

Product Code: BLB4-16.7M

£49.00 inc VAT (£40.83 ex VAT)

Stock Level: In-Stock

Quantity :

Designed and Manufactured in Europe

View Documents

Product Description

For customers requiring easy colour control over our RGB (Mood Lighting) products at a low cost Lightbox v4 is the solution. The Lightbox v4 is Colour Controller that links wirelessly to a smartphone or tablet, it uses an on-screen menu and colour wheel from a Free app on your device for full control of our RGB and RGBW (Red, Green, Blue and White) LED Strip, and other LED Mood Lights.

Any of our LED Mood Lighting Products shown in the 'Suggested Items' section further down this page can be controlled from the Lightbox. It enables over 16.7 Million different colours to be displayed including whites, warm whites, pastels to vivid colours, with brightness control, and automatic colour changing with speed control

Designed and manufactured in Europe the Lightbox v4 is extremely compact which belies it's power and capabilities to deliver outstanding control over speed of colour change or any single color you want to be displayed.

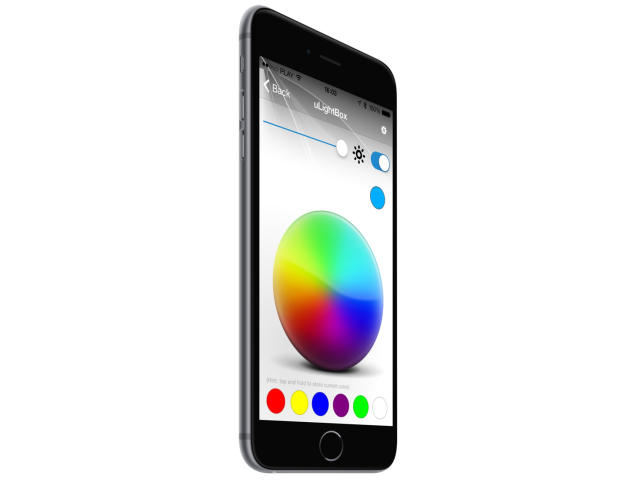

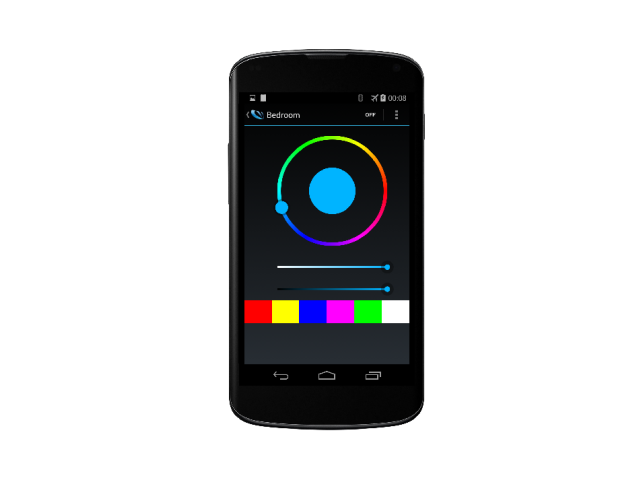

All control is via Bluetooth, simply download the free app to your phone or tablet then use the on-screen colour wheel to select the desired colour.

  • Lightbox v4 Automatically resumes the last setting (Colour changing or static colour) when switched on at the power without needing the App. This makes it ideal for switching from a light switch or even a PIR (Motion Sensor)

Unlimited APP Downloads, download to every device in the house if necessary

Compatible with:

  • Android Tablet with minimum of 4.3 o/system and later
  • Android Phone with minimum of 4.3 o/system and later
  • iPhone 4s, to 7+, 8 and all models after
  • iPad 3, 4, 5, 6 and all models after
  • iPad Mini 1/2
  • iPad Air, AI 2, and all thereafter
  • iPad Air 2
  • iPod 5, 6, 7 Gen.

For multiple Zones you can use a additional LightBoxes, each can be labelled on screen allowing quick selection and control via tablet or phone from the same App.

Up to 255 of these Lightboxes can be wirelessly connected to your phone. Each can be labeled in the App so you know which device you are controlling at any given time.

Compatible with our Mood Lighting Products such as RGB LED Strip / Tape, RGB Modules, RGB Plinth Lights, RGB Spotlights etc.

The Lightbox can even be used as a single colour dimmer for products such as our white LED Strip. Up to 4 strips or other light sources can be connected to each LightBox.

See our suggested items below for just some of the compatible products.

For use via the Mains (240vA) you will need to use one of our Power Supplies (Transformers).

Due to the wide voltage range of the Lightbox, it can also be used on 12v vehicles such as Cars, Boats, Limousines, and Motorbikes. Voltages on these vehicles can reach 14.4vdc which the Lightbox is more than capable of handling, other lower cost Chinese controllers may not last long at these voltages.

5 Year Warranty

Phones in pictures not included (for illustration purposes only)

Product Specification

Voltage Range12v - 24vdc
Maximum Current12A for RGBW 12vdc (144w), (288w 24vdc)
No. of colours available16.7 Million with RGB, 4.29 Billion with RGBW)
Max. Current4A per Channel RGB, 3A per Channel RGBW
Wireless TechnologyBluetooth 4.0 LE (Low Energy)
Rangeup to 20m outdoors, ~10M indoors
Min. Operating System for Android DevicesAndroid 4.3 or later
Firmwarecan be updated via Bluetooth Dongle
Operating System for AppleiOS
Dimensions39mm x 33mm x 20mm
DurabilityNon Waterproof
Warranty5 Years
CertificationsCE, RoHS
