ZEN (2.1M Colour) Controller with Remote & Remote/Display

Product Code: ZEN

£78.00 inc VAT (£65.00 ex VAT)

Stock Level: In-Stock

Designed & Manufactured in the U.K

View accessories for this product View Documents

Product Description

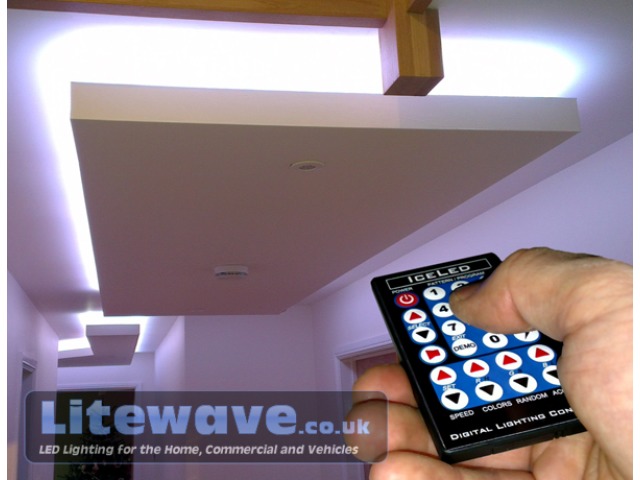

The ZEN is offers full control over our RGB Light Sources, a small credit card sized remote provides full control over every function. The ZEN is the controller of choice if you want to have full control over:

  • 2.1 Million Colours to choose from
  • Colour Range from a few colours to unlimited
  • Static Colour or Sweeping
  • Variable Sweep Speed
  • Scene Control
  • Sound to Light Activation

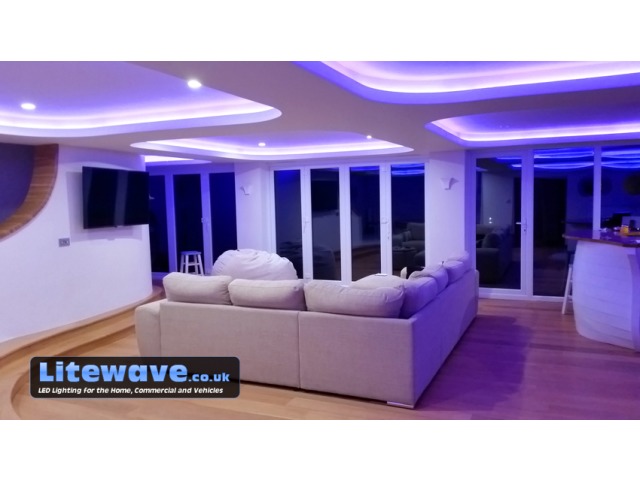

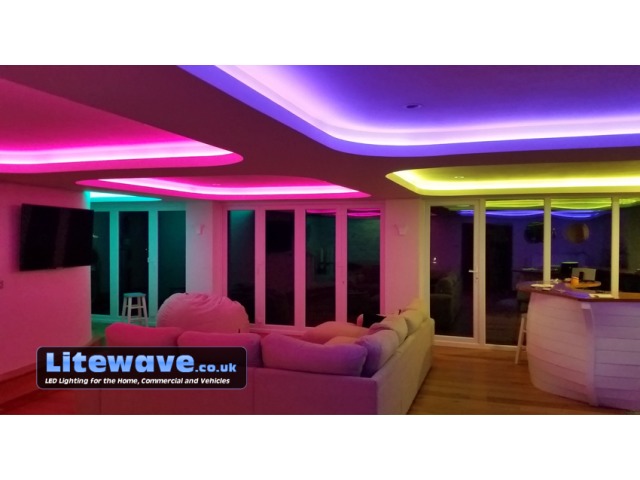

  • 4 Separately controllable Zones

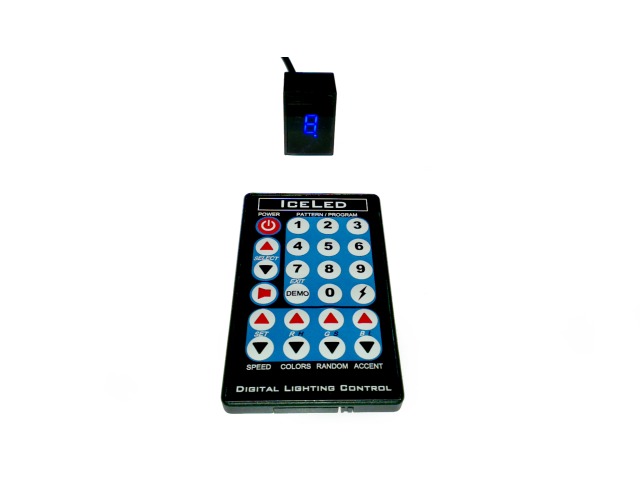

A discrete Remote Eye which also doubles as a Display to indicate the mode and function is included, it has 4.2 Meters (14ft) of cable with a jack plug on one end. This allows it to be placed in a location where it has line-of-sight from the Remote Control whilst the ZEN Box itself can be installed out of sight.

The Zen will remember the last setting allowing the power to be switched on or off from a light switch. Any setting such as static blue or a colour scan will resume when the power is switched on.


  • Digital effects creation using 2,097,152 colours
  • Remote control of all functions
  • 10 Different Programmes plus strobe
  • Automatic cross-fade between programmes
  • Sound reactive via internal mic or stereo line-in
  • Automatic switch-on programme with delay
  • Can power up to 15A (180w) of LED Lighting or virtually unlimited if powered passively.
  • Controls all of our RGB Light Surces
  • Expandable with additional controllers
  • Integrates with ICELED UFO
  • Electronic reverse polarity and over-voltage protection
  • Rugged and reliable

A full user guide is included and can also be downloaded below.

Product Specification

Voltage Range8-18vdc
Nominal supply voltage12 Volts DC
Standby current drain0.02 Amps
Maximum switched current15 Amps
Dimensions including Flange and terminal plugs121mm x 124mm x 43mm
Audio sensitivity54dB to 102dB
Data inputAny ICELED controller output
CertificationsCE, RoHS
