1A Switchmode In-Line 12vdc Power Supply, Free (5 Amp) DC Connector

Product Code: SM1APSU-IL/DC

£11.50 inc VAT (£9.58 ex VAT)

Stock Level: In-Stock

Automatic Quantity Discount


Product Description

1A 12vdc In-Line Switchmode Power Supply.

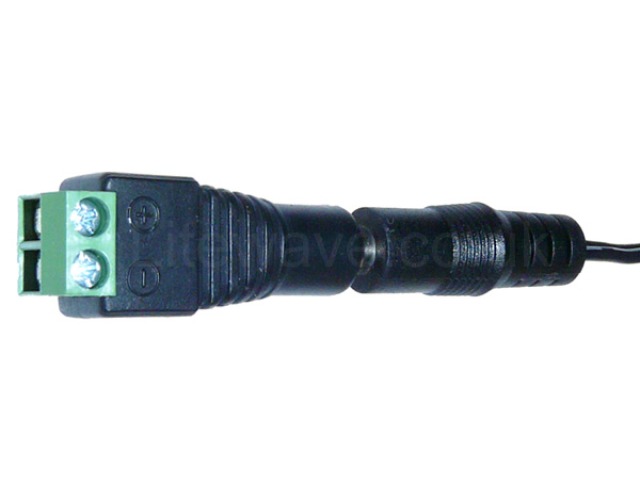

A Free DC Connector is included allowing easy connection.

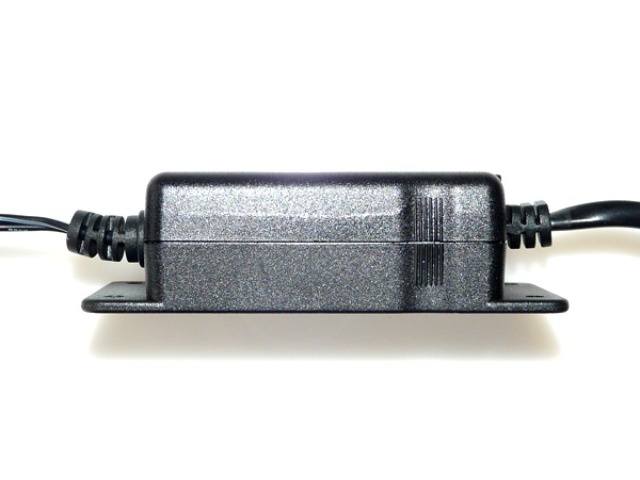

A flange is built onto the Power Supply allowing the power supply to be fastened into place.

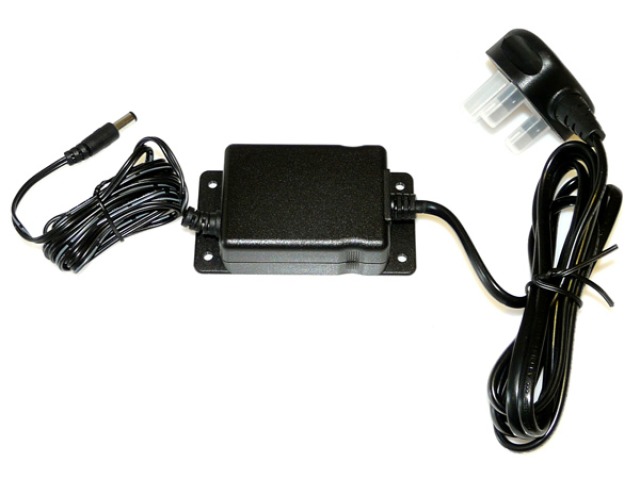

The Power supply has a mains lead with a pre-fitted U.K Plug. The plug can be removed for installations requiring on and off switching via a light switch (this should be performed by a qualified electrician).

Use only in a Dry Location

Product Specification

Rated Output Voltage12Vdc
Current Max.1A
Current Min.0A
Power (watts)12W
Full Input Voltage Range90 - 264Vac

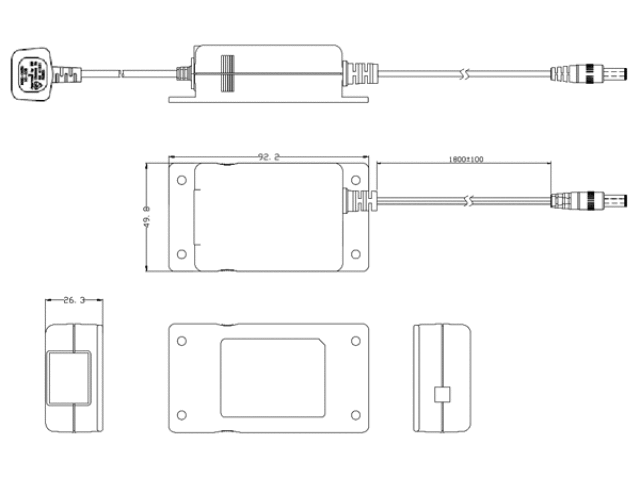

Dimensions including flange93mm (L) x 50mm (H) x 27mm (W)
12vdc Lead Length1.8M
Mains Lead Length1.8M
Load Regulation+ / -5%
ApprovalsCE, RoHS, TUV, UL, FCC, GS
EMI; VCCI class B , FCC class B , CISPR 22 class B
