Constant Current RGB LED Strip (10-15vdc) (30 LEDs/M)

Product Code: C/C-RGBLED-S(12v)

£17.00

Stock Level: In-Stock

Select Length
Quantity :
Lengths & Prices:
1 Meter£17.00
2 Meters£32.00
3 Meters£47.00
4 Meters£61.00
5 Meters£75.00
6 Meters£89.00

Other Options

Please choose one of the options below for more details

View accessories for this product

Product Description

For installations where long term brightness and reliability are critical, our Constant Current LED Strip is the only option.

Capable of displaying any visible colour including cool whites & warm whites

Constant Current RGB (Colour Changeable) LED Strip has transistors on the circuit board regulating the current and voltage to every LED for each of the 3 primary colours; Red, Green, and Blue. This ensures maximum operating brightness and a lifetime in excess of 50,000 hours.

Many online retailers make wild claims of up to 100,000 hours, this is highly unlikely without a significant decrease in brightness or failed LED Emitters unless Transistorised Electronics are used.

An additional 130 Components per Meter are used to protect each of the 3 emitters within every LED.

Advantages:

  • Uniform colour and brightness
  • Longer distances between Colour Drivers and Controllers without the small voltage drop affecting the brightness and colour
  • Reliable
  • Long Lifetime
  • Also suitable for vehicles (12v)where voltages can reach 14.4vdc when the engine is running.

Capable of displaying any colour including white and warm whites when used with one of our colour controllers below.

This is proven technology and we have already been supplying it to our installers for several years.

Each length includes a 1M flying lead for easy connection to a colour controller.

You will also need a Power Supply, shown below.

Should you require LED Strips pre-made to fit to your kitchen, rood lights, alcoves or coving, we can supply a system made to your exact requirements, with wires pre-fitted saving you time & money. Corners and room size are no problem Free Quote

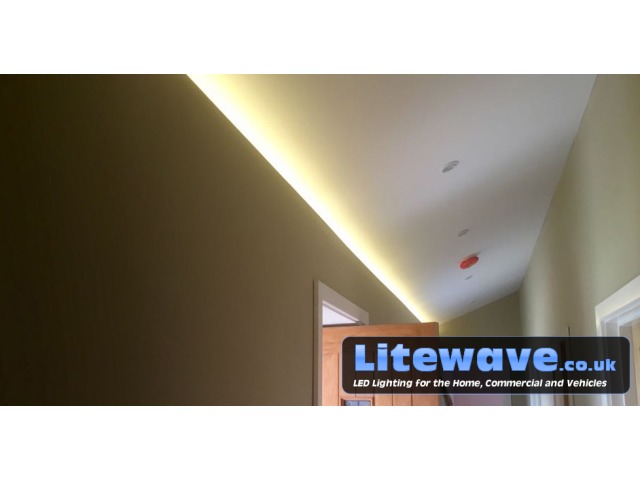

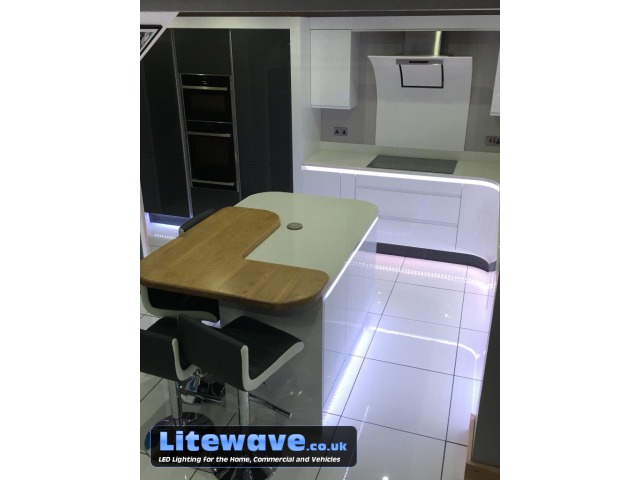

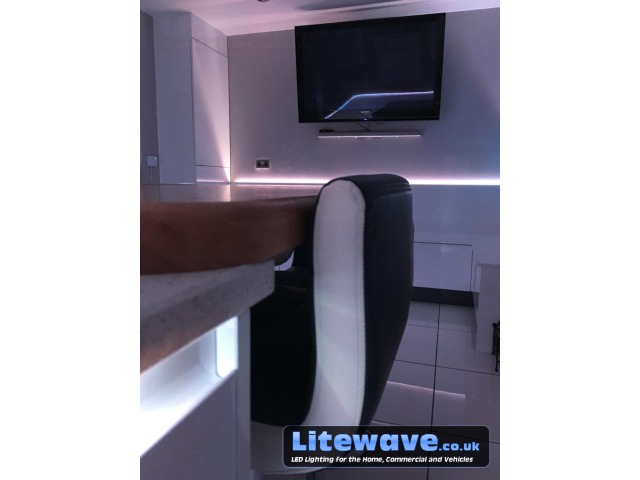

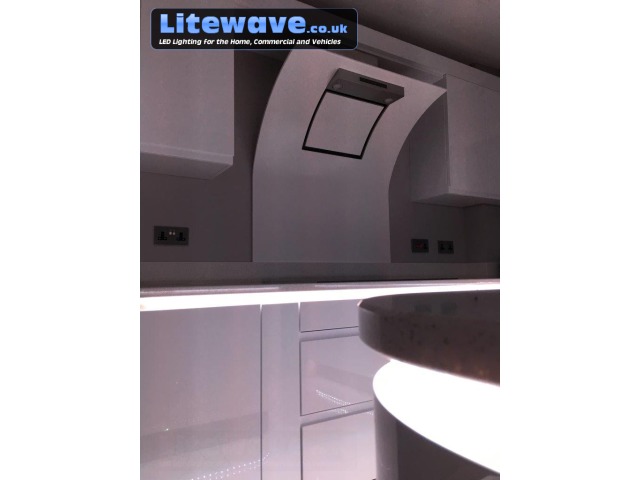

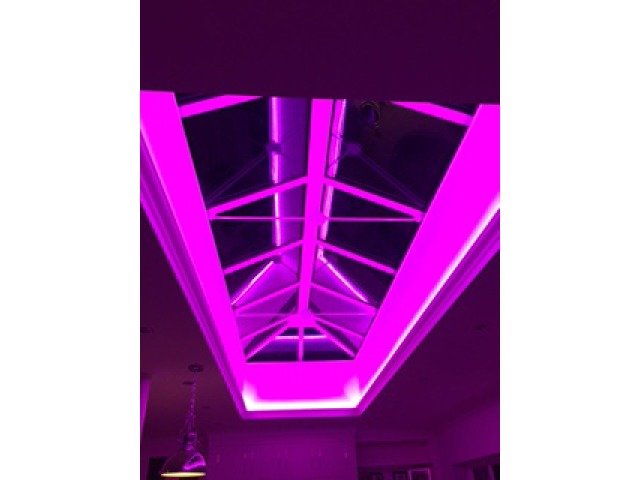

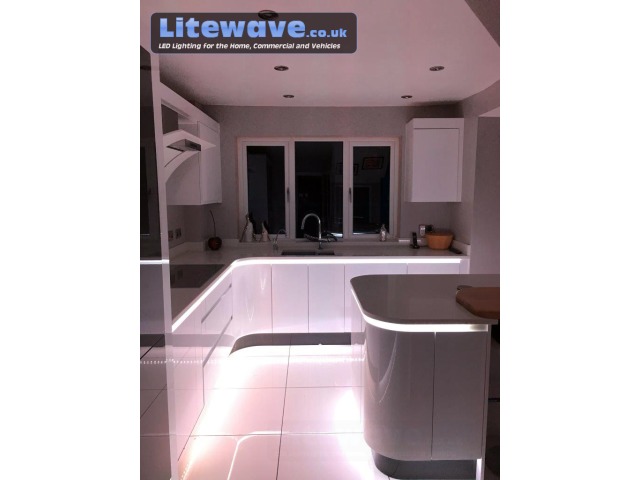

Gallery

Product Specification

Working Voltage Range10v-15vdc
LED TypeSMD Triple Chip
Brightness per Metre350Lm (Displaying White)
Current per Meter570mA
Power Draw per Meter7.2 Watts
Width of LED Strip10mm
Depth of LED Strip2.2mm
Lengths available1 - 6M
Expected Lifetime>50,000 hours
LEDs per Meter30
Cutting Points100mm
CertificationsCE, RoHS
IP RatingNone
Warranty3 Years

Accessories

For more information about one of the products below simply click the name of the product.

  Colour Controller Price
LightBox Smartphone RGB LED Controller
This will allow you to control the Strip using a suitable Smartphone or Tablet. No other additional controllers are required just a Power Supply. The App can be downloaded for free.
£49.00
Quantity :
Wi-Fi Lightbox Colour Controller (v3)
Control the Strip by Smartphone or Tablet from anywhere in the world.
£65.00
Quantity :
ZEN (2.1M Colour) Controller with Remote & Remote/Display
Capable of powering a total of 20 Meters of the C/Current RGB LED Strip, if used with a 12.5A Power Supply.
£78.00


Flexi Driver (2.1M Colour Driver)
This will provide basic 90 second colour sweeping and can be frozen on a colour by switching off for a few seconds and then back on.
£35.00
Quantity :
Flexi Driver+ (2.1 Million Colour Driver)
This is similar to the Flexidriver but has A and B memory settings and adjustable speed control and fine tuneable colours, with energy saving auto dimming and sound to light response.
£46.95
Quantity :
  Power Supplies Price
10A Switch Mode In-Line 12vdc Power Supply (Fanless)
Capable of powering a total of 16 Meters of the C/Current RGB LED Strip. Can be plugged into a mains socket or hardwired to a fused light switch
£39.00


12.5A Switch Mode In-Line 12vdc Power Supply
Capable of powering a total of 20 Meters of the C/Current RGB LED Strip. Can be plugged into a mains socket or hardwired to a fused light switch
£59.00


3A Switchmode In-Line 12vdc Power Supply, Free DC Connector (5 Amp)
Capable of powering a total of 5 Meters of the C/Current RGB LED Strip. Can be plugged into a mains socket or hardwired to a fused light switch
£16.00


5A Switchmode In-Line 12vdc Power Supply, Free DC Connector (5 Amp)
Capable of powering a total of 7 Meters of the C/Current RGB LED Strip. Can be plugged into a mains socket or hardwired to a fused light switch
£21.00


1A Switchmode In-Line 12vdc Power Supply, Free (5 Amp) DC Connector
Capable of powering a total of 1 Meter of the C/Current RGB LED Strip. Can be plugged into a mains socket or hardwired to a fused light switch
£11.50


2A Switchmode Plug-top 12vdc Power Supply, Free DC Connector (5 Amp)
Capable of powering a total of 3 Meters of the C/Current RGB LED Strip. For plugging into a mains socket only
£8.00


2A Switchmode In-Line 12vdc Power Supply, Free DC Connector (5 Amp)
Capable of powering a total of 3 Meters of the C/Current RGB LED Strip. Can be plugged into a mains socket or hardwired to a fused light switch
£14.00
