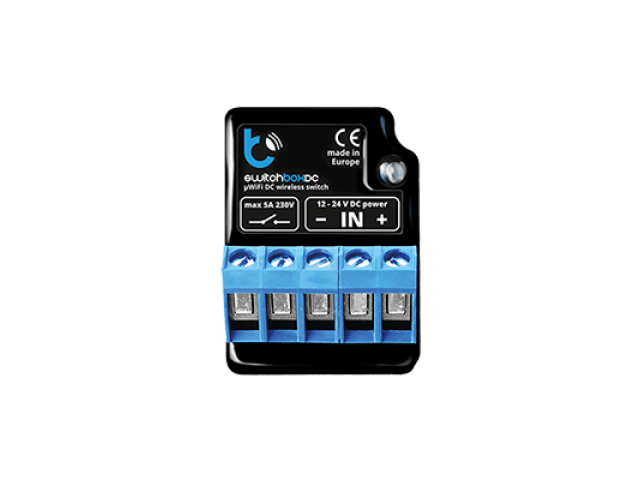

Switchbox DC enables remote switching of virtually any 12v - 24vdc device from anywhere in the world.

Alexa / Google Assistant Compatible

Compatible with:

Can be password protected!

Download the Wbox App for Android

PLEASE NOTE: This product should be installed by a qualified Electrician.

Phone not included!

Voltage	12v - 24c DC
Maximum Load	5A @ 230v AC 5A @ 30v DC
Energy Consumption	1 Watt
Connection Tech.	Wi-Fi, 2.4 GHz
Dimming Modes	Leading Edge, Trailing Edge
Compatibility	virtually all 12 - 24vdc devices
Interface	Web Based
Compatibility	Apple Android Windows Phone MS Windows Linux OSX
Range	50M in open space 100m with Access Point 250M with pro booster More limited range inside buildings
Operating Temperature	0 - 40°C
Dimensions	41mm x 51mm x 8 mm (18 mm with connector)
Built-in Protection	Thermal, Over-Current, Overload, Short-Circuit
Housing	Self-extinguishing for thermal class B (130 °c)
Dimensions	27mm x 37mm x 23mm
Certifications	CE, RoHS
