12vdc 12.5A (150w) Waterproof (IP67) Power Supply

Product Code: LW-ECS-150-V012

£59.00 inc VAT (£49.17 ex VAT)

Stock Level: In-Stock

Quantity :

PLEASE NOTE: A waterproof Junction box or waterproof connectors must be used to connect the Input of the PSU to the Mains supply, and also for the output side of the PSU to the Controller or LEDs.


Share
Description Specification

Product Description

A rugged 12vdc Power Supply designed for use in areas where it is likely to come into contact with water, but not exclusively for that purpose.

One of the main applications where this Power Supply is ideal is our Waterproof LED Tape, both the single colour and colour changeable versions

Product Specification

VoltageMains 220-240vac
TypeConstant Voltage PSU
Output voltage12vdc
Maximum Current12.5A
Power150 Watts
Power Factor0.9
Inrush Current<60A
OverloadAuto-Recovery
Short CircuitAuto-Recovery
Over-VoltageAuto-Recovery
IP RatingIP67 (Waterproof)
Weight850g

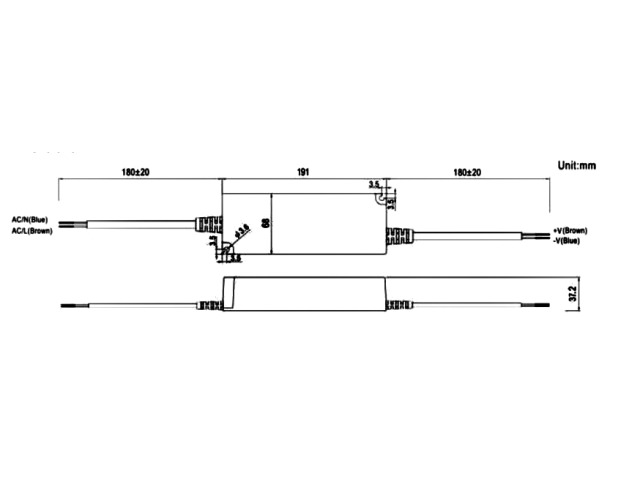

Dimensions191mm x 68mm x 37.2mm
ConnectionScrew Terminal on I/P & O/P
Lifetime>30,000 hours at TC max (40°:C)
CertificationsCE, SELV, RoHS
Safety StandardEN 61347-1, EN 613347-2-13,
EN55015, EN61000-3-2, 3, 4,5, 6,11, EN61547
EMI StandardMeets Emissions to EN5015
