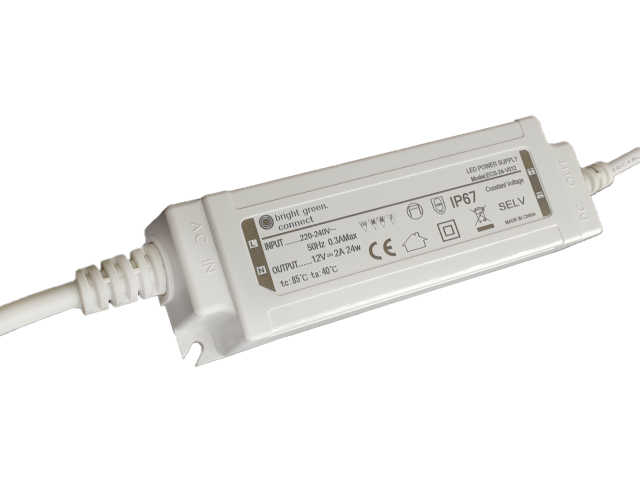

12vdc 2A (24w) Waterproof (IP67) Power Supply

Product Code: LW-ECS-24-V012

£15.00 inc VAT (£12.50 ex VAT)

Stock Level: In-Stock

Quantity :

Automatic Quantity Discount

PLEASE NOTE: A waterproof Junction box or waterproof connectors must be used to connect the Input of the PSU to the Mains supply, and also for the output side of the PSU to the Controller or LEDs.


Share
Description Specification

Product Description

A compact LED Driver, which is ideal for powering short lengths of our 12vdc LED Strip, Plinth Lights, and Niche Lights,

Product Specification

VoltageMains 220-240vac
TypeConstant Voltage PSU
Output voltage12vdc
Maximum Current2A
Power24 Watts
Power Factor0.9
OverloadAuto-Recovery
Short CircuitAuto-Recovery
Over-VoltageAuto-Recovery
IP RatingIP67 (Waterproof)
Weight180g

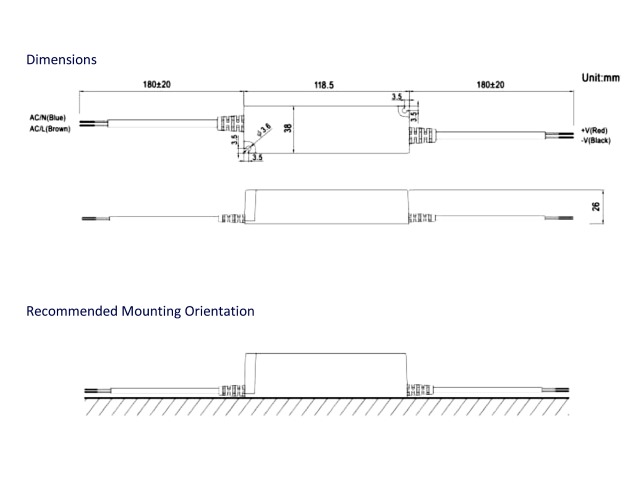

Dimensions121mm x 38mm x 26mm
ConnectionLead In, Lead Out
Lifetime>30,000 hours at TC max (40°:C)
CertificationsCE, SELV, RoHS
Safety StandardEN 61347-1, EN 613347-2-13,

EN55015, EN61000-3-2, 3, 4,5, 6,11,
EN61547
EMI StandardMeets Emissions to EN5015
