24vdc 4.16A (100w) Waterproof (IP67) Power Supply

Product Code: LW-ECS-100-V024

£42.00 inc VAT (£35.00 ex VAT)

Stock Level: In-Stock

Quantity :

Automatic Quantity Discount
PLEASE NOTE: A waterproof Junction box or waterproof connectors must be used to connect the Input of the PSU to the Mains supply, and also for the output side of the PSU to the Controller or LEDs.


Product Description

A rugged 24vdc Power Supply designed for use in areas where it is likely to come into contact with water, but not exclusively for that purpose.

One of the main applications where this Power Supply is ideal for us is Garden Lighting.

It is suitable for powering our 3w Single Colour, and 3w RGB Spotlights, and our 24vdc LED Strips where dimming is not a requirement.

Product Specification

VoltageMains 220-240vac
TypeConstant Voltage PSU
Output voltage24vdc
Maximum Current4.16A
Power100 Watts
Power Factor0.9
Inrush Current<40A
Short CircuitAuto-Recovery
IP RatingIP67 (Waterproof)

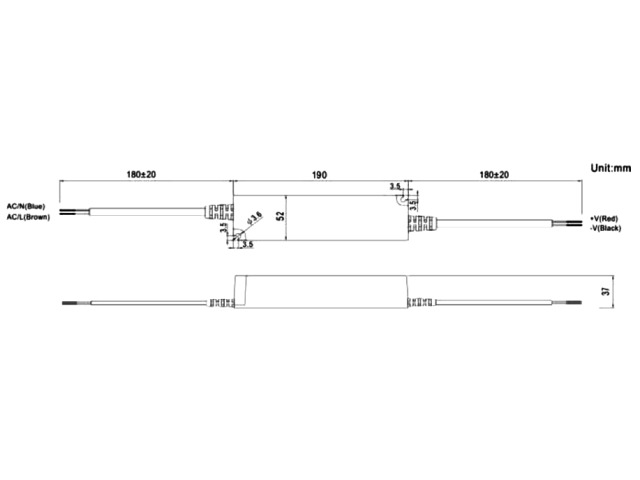

Dimensions194mm x 52mm x 37mm
ConnectionScrew Terminal on I/P & O/P
Lifetime30>,000 hours at TC max (40°:C)
CertificationsCE, SELV, RoHS
Safety StandardEN 61347-1, EN 613347-2-13,

EN55015, EN61000-3-2, 3, 4,5, 6,11,
EMI StandardMeets Emissions to EN5015
