Aluminium LED Profile - For Fitting into a routed groove (Extra Deep)

Product Code: ALP-A2515

£18.50 inc VAT (£15.42 ex VAT)

Stock Level: In-Stock

Quantity :

Select the number of Meters you require. If you select 1 we will send 1 Meter, select 2 we will send a 2 Meter length, select 5 and we will send 2 × 2 Meter lengths and 1 × 1M length.

Quantity Prices:

2 Meters: £ 18.25 Per Meter
3 Meters: £ 17.95 Per Meter
4 Meters: £ 16.95 Per Meter
5 Meters: £ 15.95 Per Meter
10 Meters: £ 13.95 Per Meter

View Documents

Product Description

This Aluminium channel is designed to be fitted into a channel between materials or a routed groove. It can easily be cut to length by hacksaw or a chop saw with a suitable cutting blade. The Polycarbonate Cover should be cut carefully with a fine toothed saw.

This is a deeper channel (12mm internal) allowing greater light dispersion for less chance of 'light-dots' (depending on the type of LED Strip used).

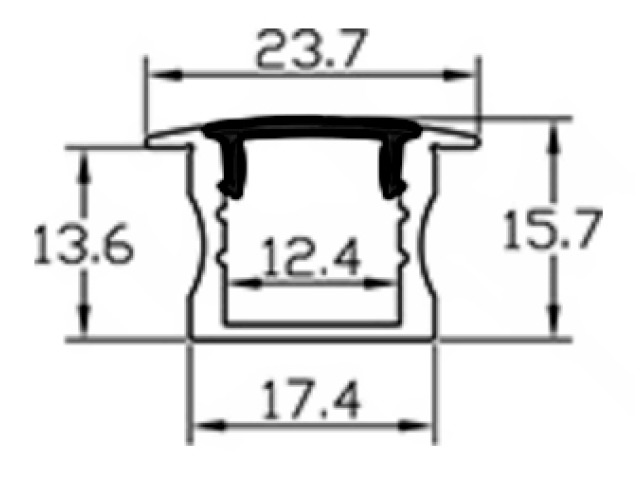

The routed channel to fit the Aluminium Profile into should be 17.5mm wide with a depth of 14mm

Anodised for a smooth appearance that will not tarnish.

Ideal for:

  • Under Kitchen Cabinets
  • Table Tops
  • Kitchen Plinths

This Aluminium Profile allows any of our LED Strips up to 11mm to be set into the channel.

The Channel is not supplied as waterproof, it is up to the installer to make the necessary seals with a suitable sealant.

Available as 1 Meter or Continuous 2 Meter length.

End Caps included.

This product is only supplied to customers buying our LED Strip, Constant Current Strip recommended. This is due to the courier cost of delivery of a 2M Postal Tube

PLEASE NOTE: Mainland U.K Delivery cost (£25) has been included in the price. We can fit up 5 Profiles into a Postal Tube, so it works out more cost effective the more you buy.

Product Specification

CoverOpaque Polycarbonate
Lengths available1M / 2M
ColourLight Silver
Dimensions25mm x 15mm
Temp. Range of PC Cover50~130°C
LED Strip Handlingup to 15w per Meter
