Aluminium LED Profile - Steps and Stairs

Product Code: ALP-S001

£22.95 inc VAT (£19.12 ex VAT)

Stock Level: Out of Stock

Select the number of Meters you require. If you select 1 we will send 1 Meter, select 2 we will send a 2 Meter length, select 5 and we will send 2 × 2 Meter lengths and 1 × 1M length.

Quantity Prices:

2 Meters: £ 20.95 Per Meter
3 Meters: £ 18.95 Per Meter
4 Meters: £ 17.95 Per Meter
5 Meters: £ 16.95 Per Meter
10 Meters: £ 15.75 Per Meter



Product Description

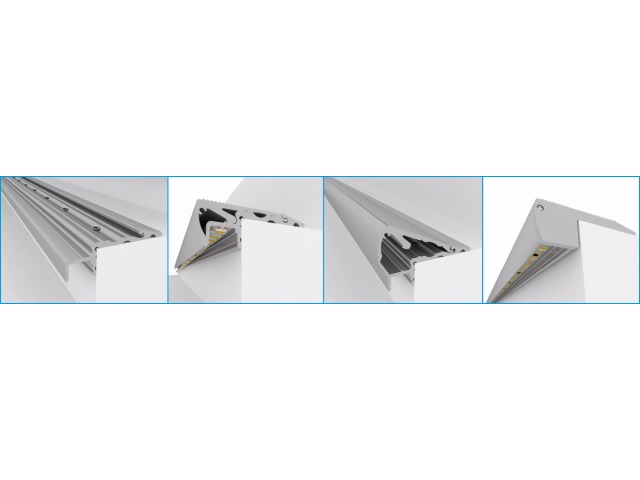

If you need to illuminate steps or stairs this profile may be the solution, it has ridges built-in providing a non-slip finish.

Any of our LED Strips either single colour or colour changing up to 12mm in width can be installed into the profile.

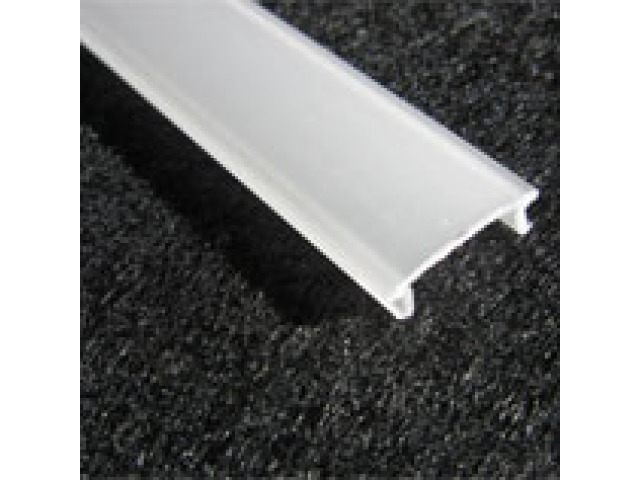

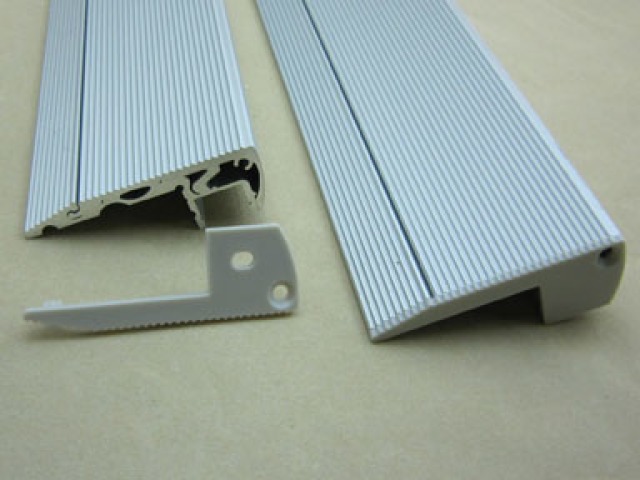

The fitting is supplied in two main parts, the first fixes to the step with pan head or countersink screws, the second main part is then fitted to conceal the screws, then the LED Strip is applied to the track under the Aluminium profile. To protect the strip and finish the appearance the opaque polycarbonate cover clips over the LED Strip, then the end caps are fitted.

The profile can easily be cut to length by hacksaw or a chop saw with a suitable cutting blade. The Polycarbonate Cover should be cut carefully with a fine toothed junior hacksaw.

The Channel is not supplied as waterproof, it is up to the installer to make the necessary seals with a suitable sealant.

Anodised for a smooth appearance that will not tarnish.

Available as 1 Meter or Continuous 2 Meter length.

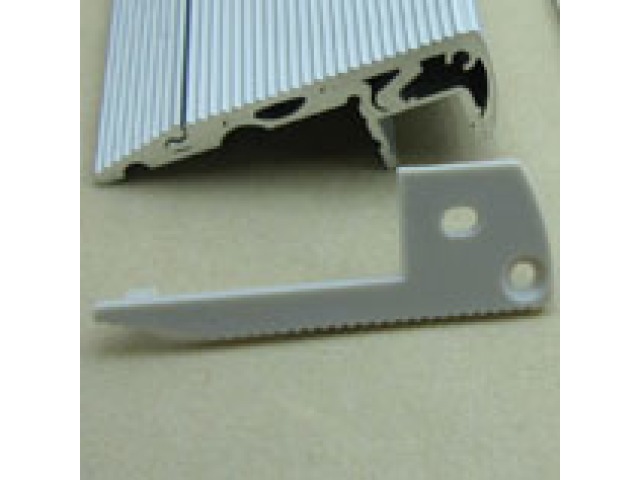

End Caps included.

This product is only supplied to customers buying our LED Strip, Constant Current Strip recommended. This is due to the courier cost of delivery of a 2M Postal Tube

PLEASE NOTE: Mainland U.K Delivery cost (£25) has been included in the price. We can fit up 5 Profiles into a Postal Tube, so it works out more cost effective the more you buy.

Product Specification

CoverOpaque Polycarbonate
Lengths available1M / 2M
ColourLight Silver

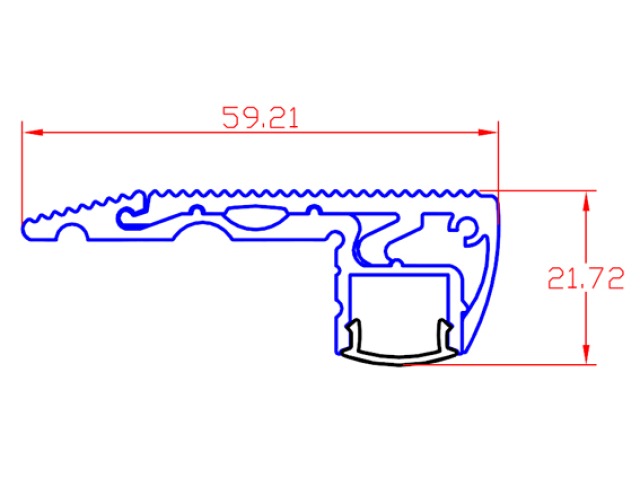

Dimensions59.2mm x 21.7mm
Temp. Range of PC Cover50~130°C
LED Strip Handlingup to 15w per Meter
