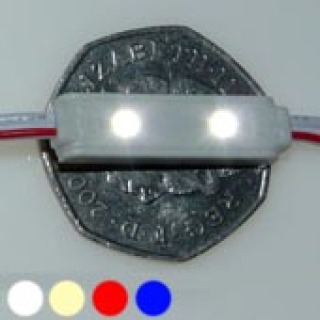

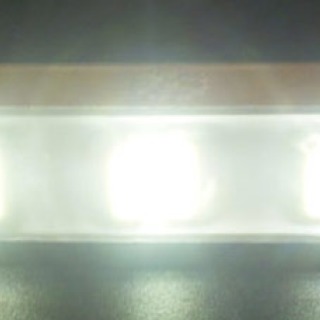

SMD LED Module (12vdc)

Product Code: SMDMOD

£1.20 inc VAT (£1.00 ex VAT)

Stock Level: In-Stock

Select Colour
Quantity :

Automatic Quantity Discount

As low as 0.95 each (for 100+ Modules)

View accessories for this product View Documents

Product Description

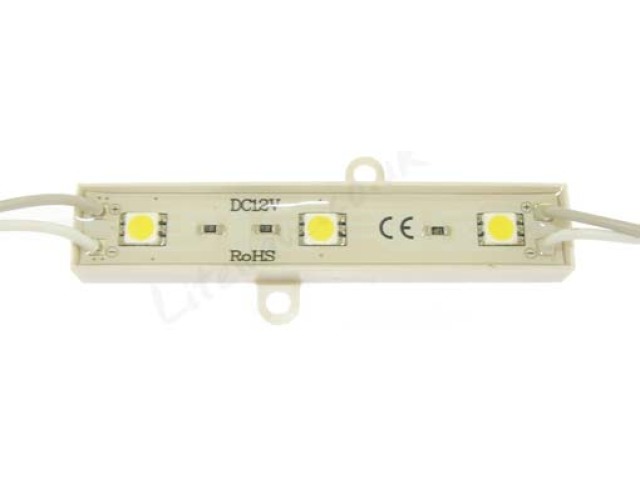

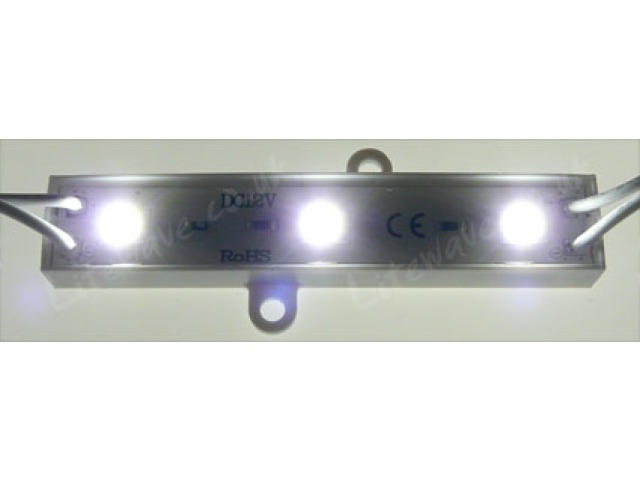

The SMD LED Modules have 3 x Triple Chip LEDs sealed (IP65) into a plastic case making them suitable for use in wet environments indoors or outdoors.

They are very energy efficient and don't get hot. 20 Modules use just 14.4 watts.

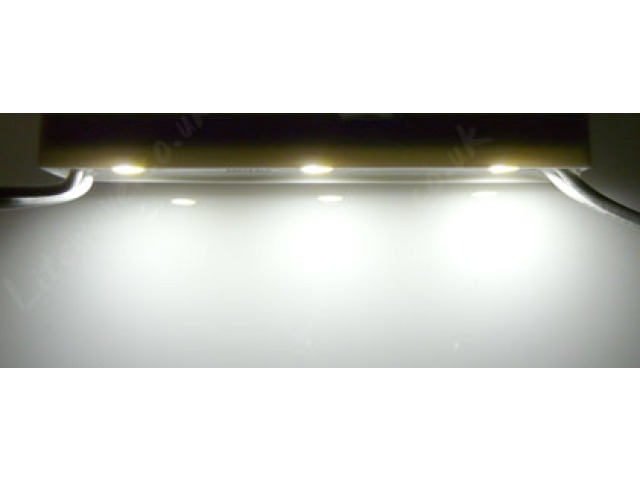

The Modules give a wide 140° dispersion of light.

They are designed to connect directly to a 12vdc power supply (transformer) or battery.

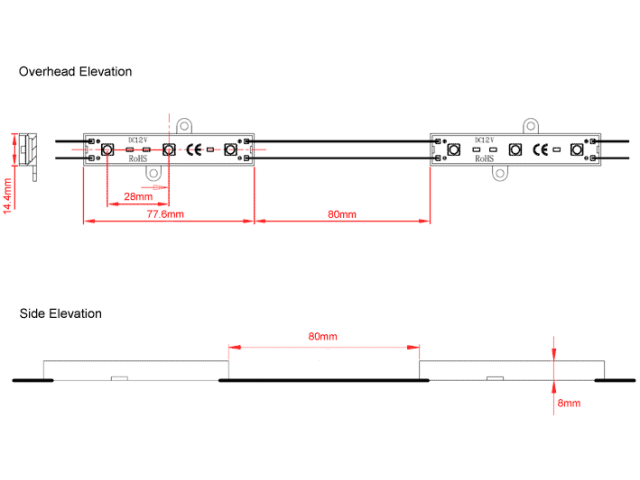

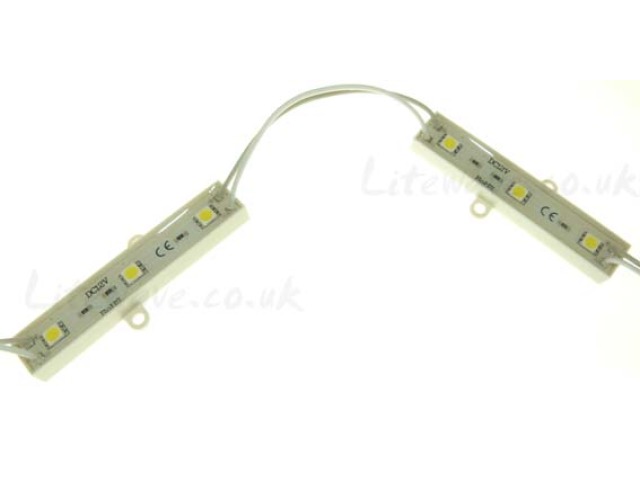

The Modules are supplied from the factory in a Daisy Chain of 20, the connecting wire between each module is 3 inches (80mm), the wire can be extended to the length required for your installation.

They are very versatile and can be cut down to the number of Modules required for the purpose. We can supply them as a single Module or in a chain of any length up to 20 (pre-connected).

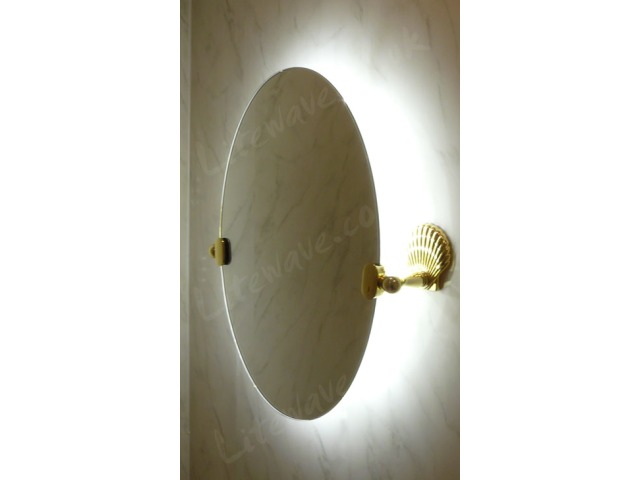

Ideal for:

  • Sign Lighting

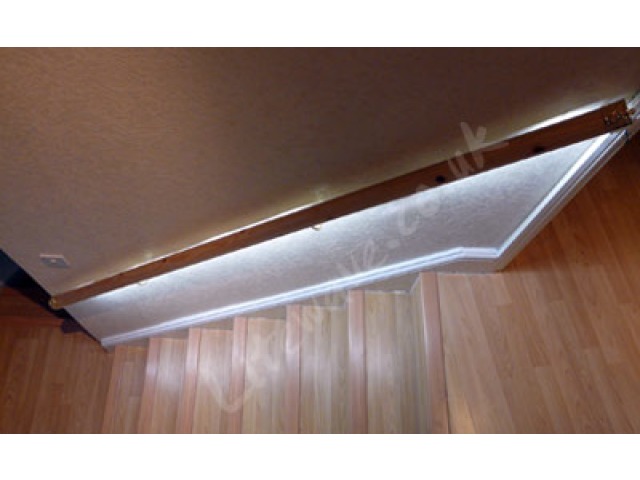

  • Lighting Hand Rails
  • Work Vans
  • Under Counters
  • Under Cabinet Lighting
  • Ornament Cabinets
  • Bar Lighting
  • Stairs & Steps

The LED Modules have mounting lugs pre-moulded into the casing making installation straight forward. Double-sided adhesive pads can also be used on the backs of the modules.

Discount for quantity

Product Specification

LED TypeSMD LED, 3 per Module
Power0.72w per Module
Current Draw per Module60ma (0.06A)
Lifetime50,000 hours
Light Output (Lumens) for a chain of 20 ModulesRed - 220
Green - 360
Blue - 220
Yellow - 220
Pure White - 540
Warm White - 540
Case MaterialABS (UV Resistant)
DurabilityIP65 (Splashproof)
CertificationsCE, RoHS
