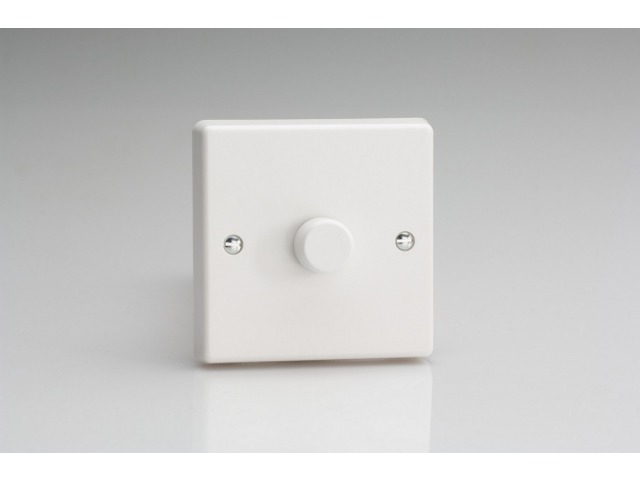

Varilight V-Pro Single LED Dimmer (1 x 120w) Push on/off - White

Product Code: V-Pro-JQP401W

£18.25 inc VAT (£15.21 ex VAT)

Stock Level: In-Stock

View accessories for this product

View Documents

Product Description

This is a Single LED Dimmer Switch, Push on/off, capable of dimming a 120w LED load. Unlike the V-Pro Dimmer Module this Dimmer is supplied pre-fitted to a White plate.

It is ideal for use with our Mains Power Supplies for Dimming our LED Strips.

* Save energy by dimming the lights when you don't need them at full brightness.

U.K Design and Manufactured.

Product Specification

Operating Voltage	Mains 230vAC 50Hz
Type	Trailing Edge
Maximum Load	120 Watts LED
Minimum Load	10 Watts LED
Max. Current Rating	1.3A
Faceplate Depth	16.1mm
Recommended Back Box depth	25mm
Dimensions	85mm x 85mm x 47mm
Warranty	1 Year Guarantee
Applicable Safety Standard	BS EN 60669-2-1

Product Documents

VARILIGHT Product Data Sheet JQP401W
