1 Watt LED Modules (12vdc)

Product Code: 1WLEDM

£7.50 inc VAT (£6.25 ex VAT)

Stock Level: In-Stock

Select Colour
Quantity :

Automatic Quantity Discount

Similar Products

Please choose one of the options below for more details

View accessories for this product View Documents


Product Description

These 1 Watt LED Modules use a Luxeon equivalent LED for a light output that far surpasses that of standard LEDs. For use where a lot more light is required.

Ideal replacement for 5-10w Halogens.

They can pay for themselves with power saved in less than a year!

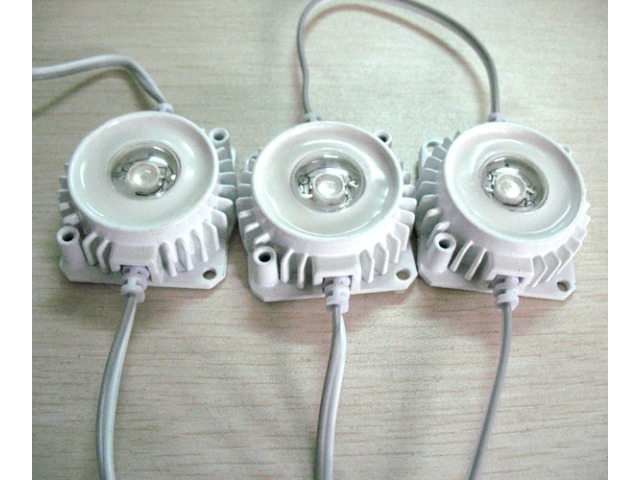

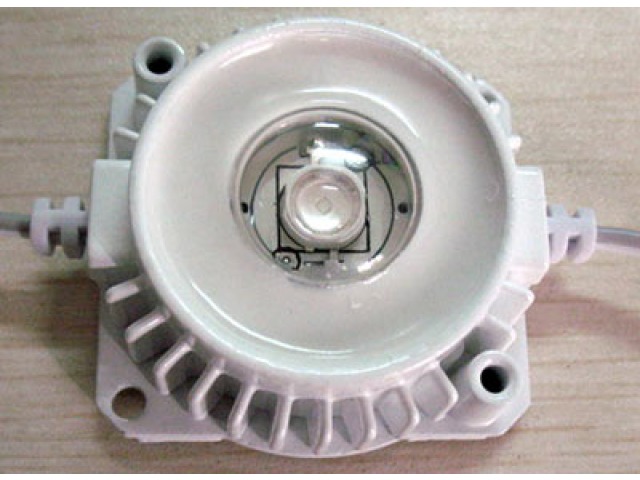

Each LED is sealed into an aluminium case with Silicone making the product splash proof to IP65 standard.

The built in Driver circuitry regulates input voltages from 12v-24vdc to the correct voltage and current to the LED Emitter, ensuring a long lifetime of 40,000 - 50,000 hours.

The Modules can operate from voltages as low as 6v!

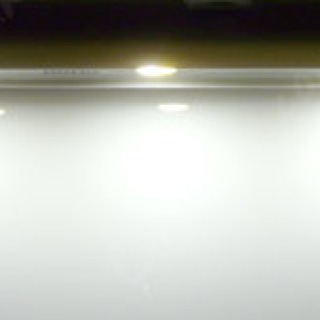

Below, a kitchen cabinet illuminated with 3 × 1w LED Modules (in white).

The LEDs draw approx 1.3 watts each so the total power consumption for 3 Modules is just 4 watts. In power terms if used 24 hours a day every day it would cost approximately £5 per year to run 3 Modules, whereas 3 × 10w Halogens would cost approximately £36 to run per year. So the Modules would pay for themsleves with the power saved in less than 1 year!

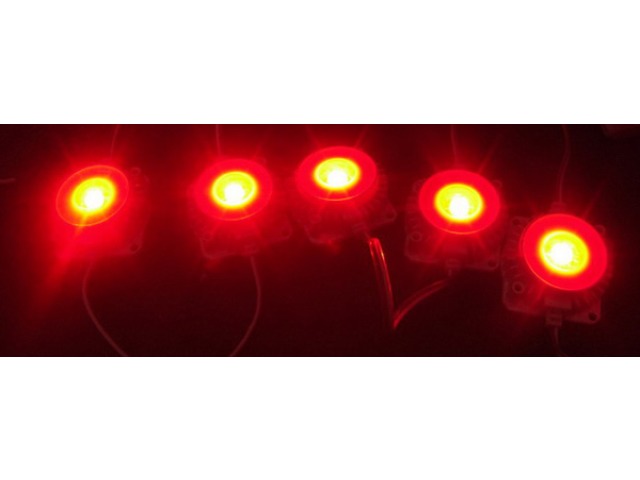

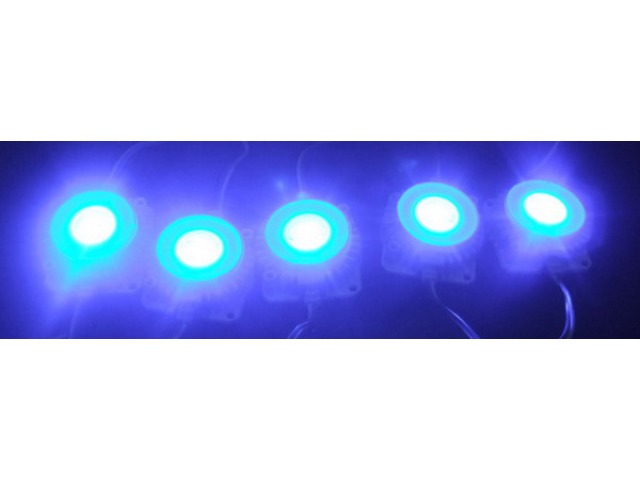

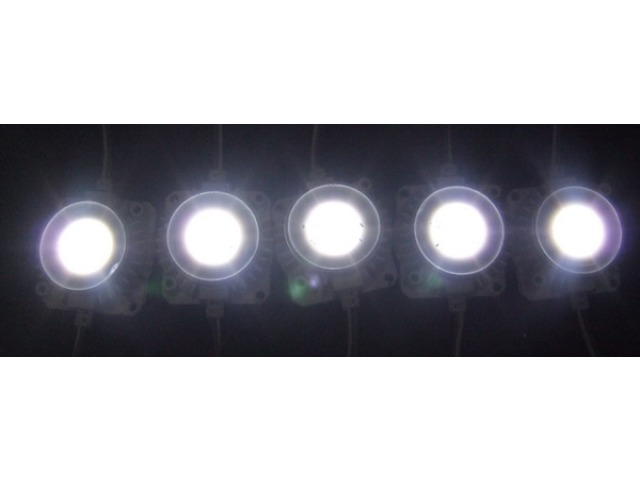

The Modules can be supplied in any number up to 24 in a single chain. There is 8 inches (20cm) of wire joining each Module, depending on your installation you can cut the wire between Modules. For example you could have a chain of 2 Modules in one display cabinet and an extended wire going from the last module in the row to a single module in another cabinet.

Ideal for: Cars - Interior or exterior, Work Vans, Under Cabinet Lighting, Ornament Cabinets, Computer Cases, Trailers, Bars, Stairs & Steps, Interior Lights for Boats etc.

The 1 Watt LEDs are supplied with 3M self-adhesive padded tape pre-fitted for a quick installation. There are also mounting lugs on each side of the Module's case for an even more secure fitting.

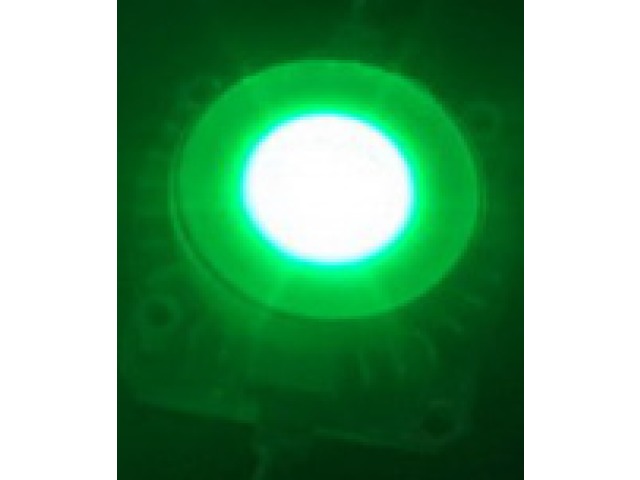

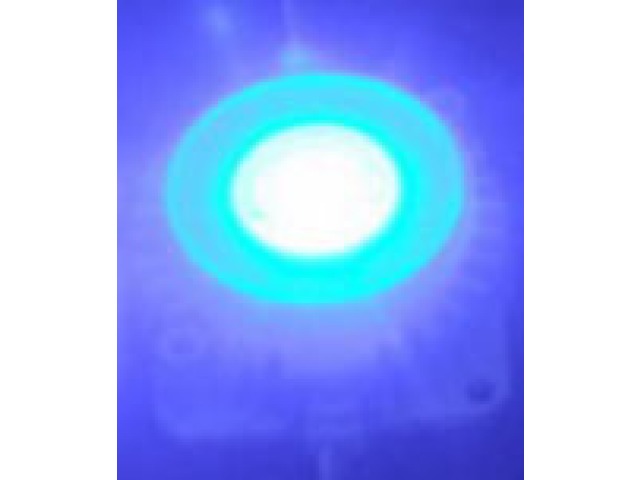

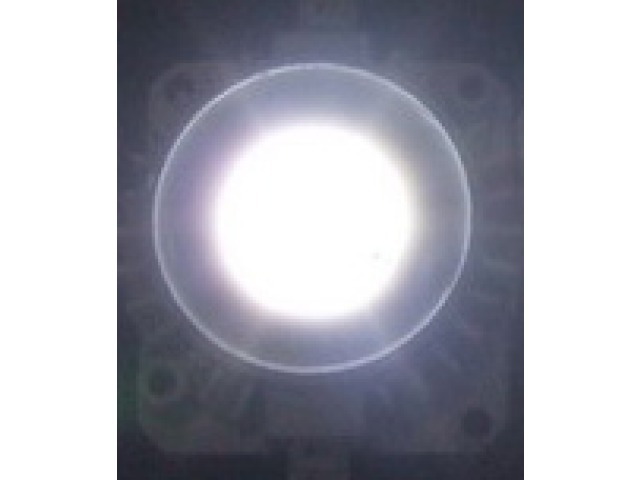

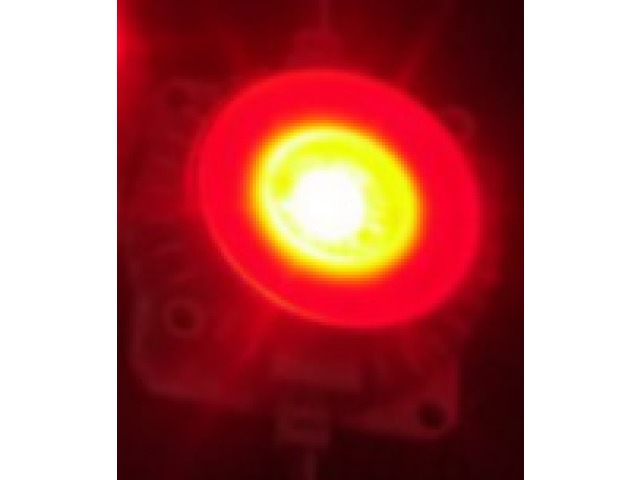

5 Colours available - Warm White, Blue, Green, Amber, and Red

To calculate how many Modules you need to light an area, measure the total length you intend to light up.

Formula: Length to Light in Meters / 245 = Number of Modules required.

For example: if you wanted to light under a shelf measuring 1.5 Meters (1500mm) you need to divide 1500 by 245, this would give 6.12, round down to 6. So you would need 6 × 1W Modules.

Ideal For:

  • Sign lighting
  • Garden/Patio Lighting
  • Kitchen Worksurface Lighting
  • Footwell Lighting
  • Wheel Arch
  • I.C.E Lighting
  • Cab Lighting Vans/Trucks
  • Workshop/Shed Lighting

Product Specification

Module Dimensions(L)39mm x (W)31mm x (H)12mm (L) 1 1/2" x (B) 1 1/4" x (H) 1/2 "
Length of connecting wire between Modules200mm (8")
Total length for a chain of 9 Modules1.3 Meters (52" or 4Ft 3")
RatingRATED AT IP65 (Splashproof)
Case MaterialAluminium
Viewing Angle80-160 °
Power Requirements Per Module110ma
Voltage12-24vdc
Brightness per Module (Lm = Lumens)Red: 40-50 Lm
Amber: 30-40 Lm
Blue: 15-25 Lm
Green:- 60-70 Lm
White: 90-100 Lm
CertificationsCE, RoHS
