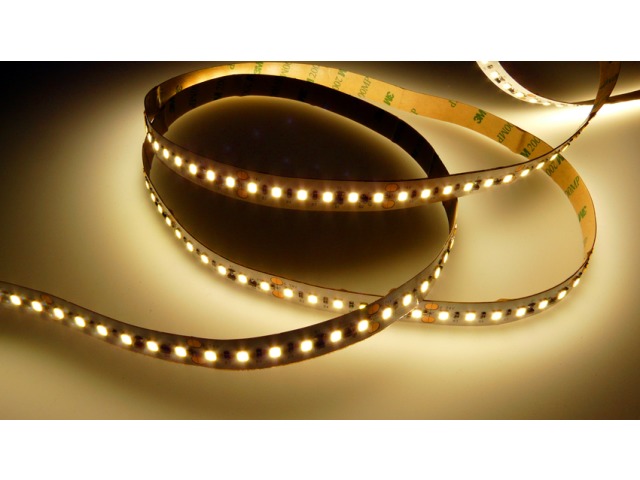

24vdc Constant Current LED Strip (120 LEDs/M)

Product Code: CCLEDS/120/24v

£23.00 inc VAT (£19.17 ex VAT)

Stock Level: In-Stock

Select Length
Select Colour
Quantity :

As low as £19.60* per Meter including VAT.

1 Meter length - £23.00
2 Meter length - £42.00
3 Meter length - £63.00
4 Meter length - £80.00
5 Meter length - £98.00

View accessories for this product


Product Description

Litewave ® Professional LED Strip with advanced Electronics, it will last longer than any standard LED Strips due to the advanced on-board electronics, it also provides consistent brightness along the entire length of Strip. Long cable runs of upto 30 Metres pose no problem, even a voltage drop to 20v, will not affect the brightness. It will be the same brightness on 20vdc as it is on 24vdc

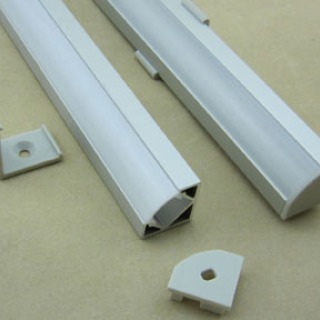

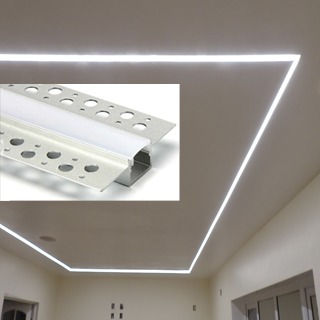

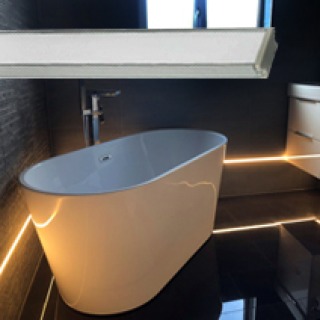

Use with our Aluminium Profile for a Dotless appearance

Most LED Strips will peak at just 1000 hours, that's only 6 weeks of use before the brightness starts to decline. After 2-3 Years the brightness can decrease by 25-40%.

Our Strip has additional components to protect the LEDs. It has a true lifetime in excess of 50,000+ hours with minimal decay in brightness.

Cutting Points every 5cm

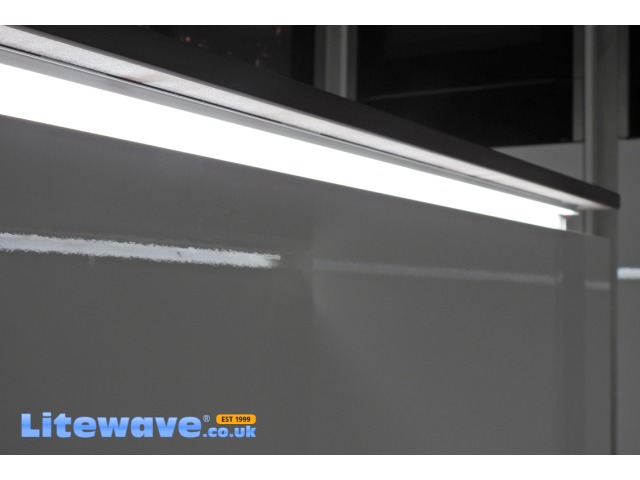

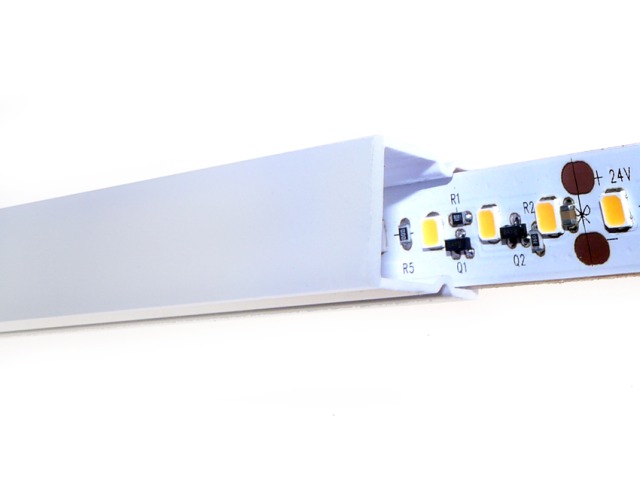

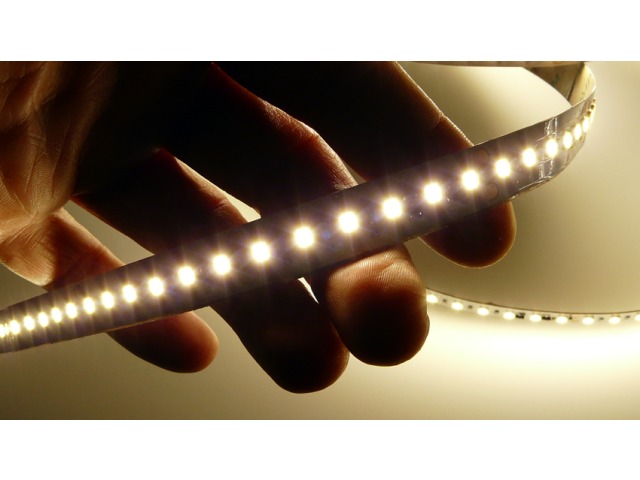

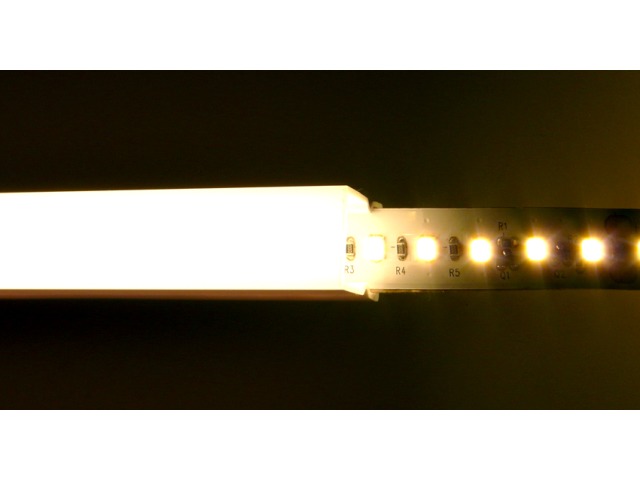

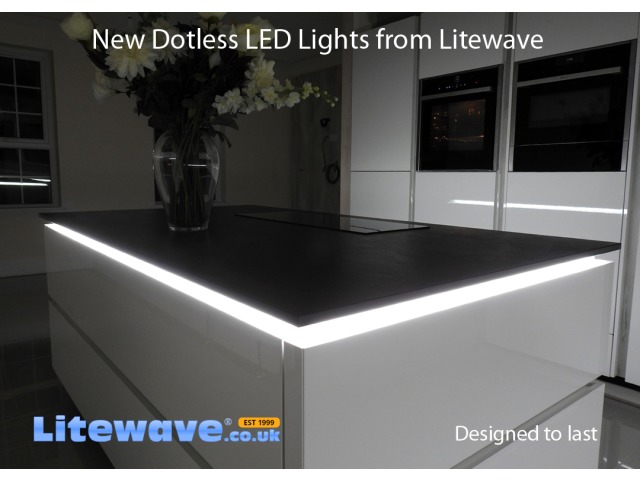

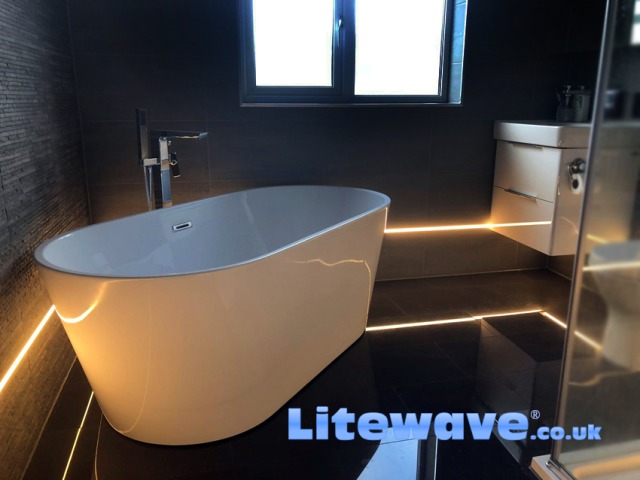

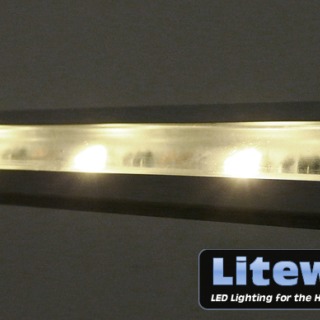

This LED Light Strip has the LEDs placed very close together making it ideal for use in any of our LED Profiles for a Dot-Free Fluorescent Tube appearance.

Available in Neutral White (4500k) and Warm White (3000k)

*Dimmable with our range of Mains Dimmable Power Supplies (below).

Free Cutting & Soldering Service!

3 Year Warranty for commercial or domestic use.

Product Specification

Voltage24vdc
LED Type2835 SMD Chip
LED BrandEpistar with PLC Completion
Current per Meter400mA
Power Draw per Meter9.6 Watts
Light Dispersion120-140 °
Width of LED Strip12mm
Depth of LED Strip2.2mm
Lengths available1-5M
Brightness Lumens /M~1400Lm
Expected Lifetime>50,000 hours
LEDs per Meter120
Cutting Points50mm
CertificationsCE, RoHS
Warranty6 Years Commercial or Domestic use

Product Videos

Accessories

For more information about one of the products below simply click the name of the product.

  Power Supplies Price
6.25A Switchmode 24vdc (150w) (Waterproof) Power Supply
This PSU can be plugged in or wired to a Fused Light Switch, it can power up to 14 Meters of 120 LED/M Constant Current LED Strip
£59.00
Quantity :
8.33A Switchmode 24vdc (200w) (Waterproof) Power Supply
Can power up to 18 Meters of 120 LED/M Constant Current LED Strip
£69.00
Quantity :
Meanwell 8.33A 24vdc (200w) (Waterproof) Power Supply
For wiring into a lighting circuit, it can power up to 18 Metres of 120LED/M Constant Current LED Strip
£69.00


24vdc 4.16A (100w) Waterproof (IP67) Power Supply
For wiring into a lighting circuit, it can power up to 9 Metres of 120LED/M Constant Current LED Strip
£42.00
Quantity :
24vdc 2.08A (50w) Power Supply - Mains Dimmable
For wiring into a lighting circuit, it can power up to 4.5 Metres of 120LED/M Constant Current LED Strip
£32.00
Quantity :
24vdc 1A (24w) Waterproof (IP67) Power Supply
For wiring into a lighting circuit, it can power up to 2 Metres of 120LED/M Constant Current LED Strip
£15.00
Quantity :
24vdc 2.5A (60w) Waterproof (IP67) Power Supply
For wiring into a lighting circuit, it can power up to 5 Metres of 120LED/M Constant Current LED Strip
£26.00
Quantity :
  Dimmers Price
LightboxS - 12/24vdc Dimmer with On/Off
Suitable for Dimming up to 7 Meters of 120 LED/M Constant Current LED Strip. Provides Control from anywhere in the World via Smartphone or Tablet.
£39.00
Quantity :
24vdc 1.04A (25w) Power Supply - Mains Dimmable
For wiring into a lighting circuit, it can power up to 2 Metres of 120LED/M Constant Current LED Strip
£24.75
Quantity :
24vdc 4.16A (100w) Power Supply - Mains Dimmable
For wiring into a lighting circuit, it can power up to 9 Metres of 120LED/M Constant Current LED Strip
£55.00
Quantity :
Varilight V-Pro LED Dimmer Module (120w)
Highly recommended for smooth dimming of LED Strip
£17.50


24vdc 8.33A (200w) Power Supply - Mains Dimmable
For wiring into a lighting circuit, it can power up to 18 Metres of 120LED/M Constant Current LED Strip
£87.00
Quantity :
24vdc 2.08A (50w) Power Supply - Mains Dimmable
For wiring into a lighting circuit, it can power up to 4 Metres of 120LED/M Constant Current LED Strip
£32.00
Quantity :
