Colour Changing (RGB) LED Modules - Wiring Schematics

The Mains Power Supply converts the voltage into a safe low voltage of 12vdc which the RGB Modules and controllers run from.

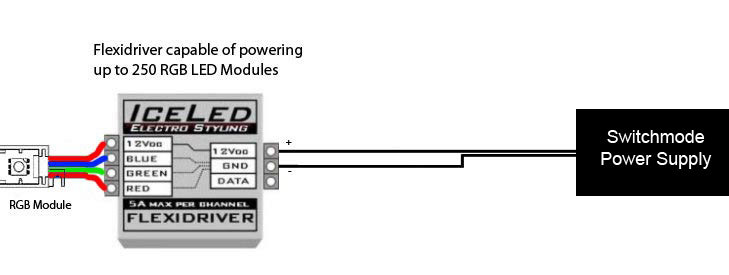

RGB LED Modules connected to Flexi Driver & Power Supply

Above: Connection of the RGB LED Modules to the Flexidriver, and Power Supply.

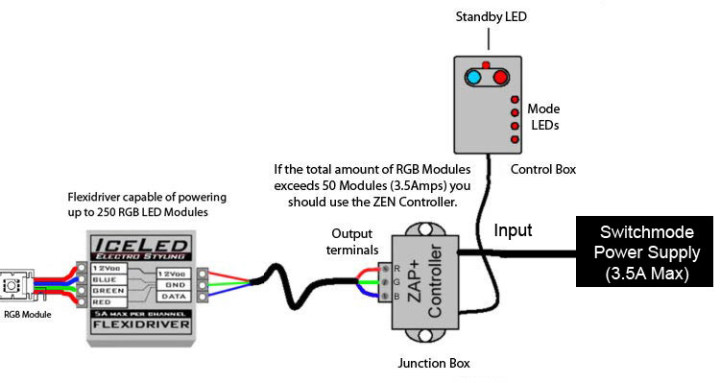

Below: A ZAP+ Controller is added for more control options.

 RGB LED Modules connected to Flexi Driver & ZAP Controller

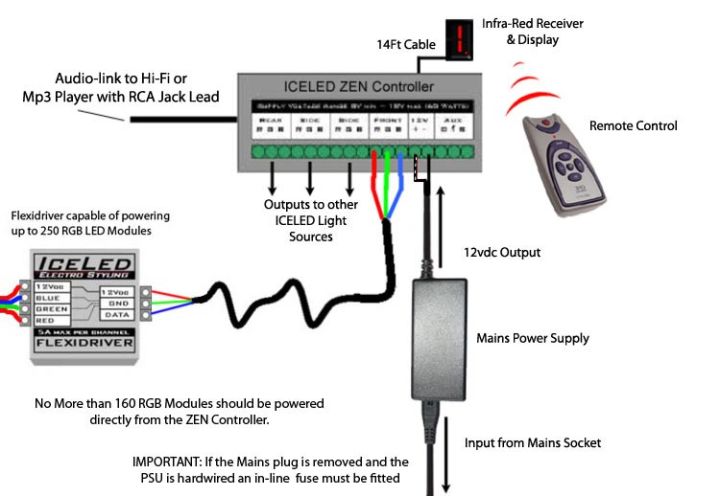

Below: A more complicated system using the ZEN Controller.

RGB LED Modules Connected to Flexi Driver and ZEN Controller
