Product Description
Litewave® Architectural 24vdc RGB LED Strip is designed or the installations where long term brightness and reliability are critical this is the wise choice.
By using 24vdc instead of 12vdc, long cable runs between the Strips and the Colour Controller and Power Supply pose no problem. This will look the same on 20v as it does on 24v.
Capable of displaying any visible colour including cool whites & warm whites

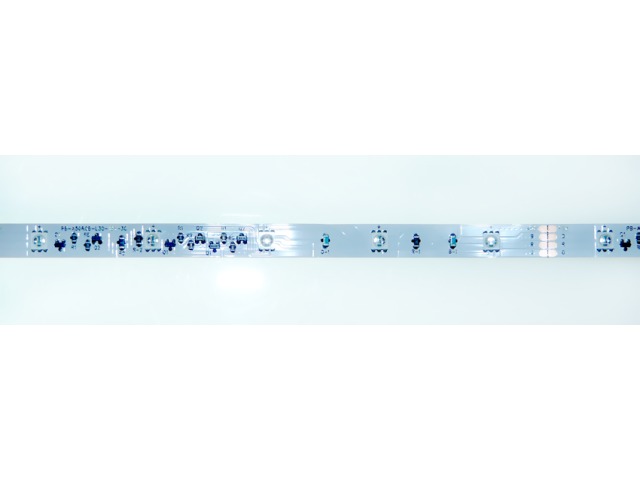

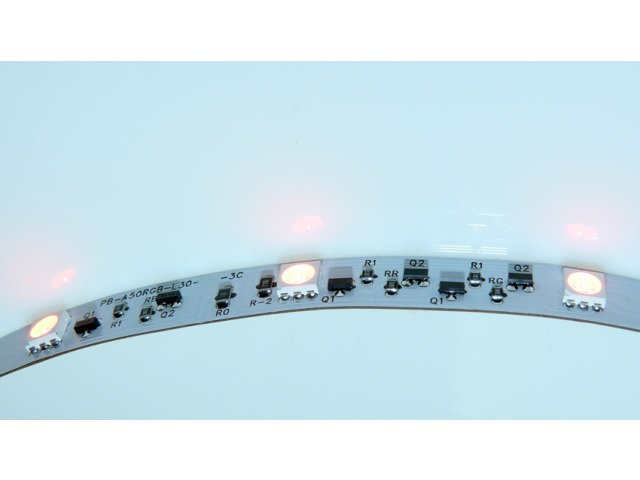

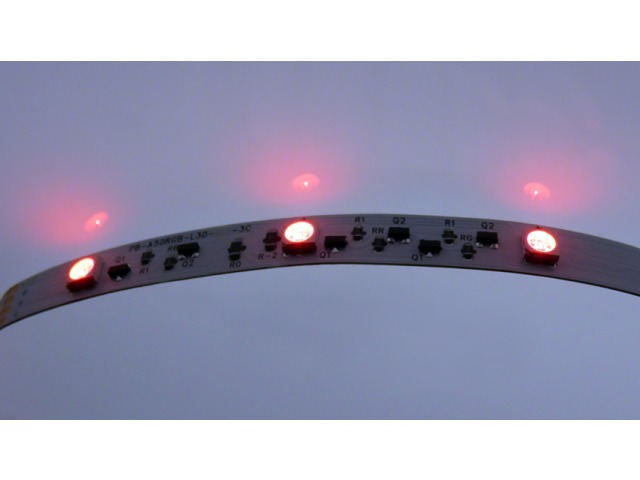

Litewave® Architectural Strip has drivers on the circuit board regulating the current and voltage to every LED for each of the 3 primary colours; Red, Green, and Blue. This ensures maximum operating brightness and a lifetime in excess of 75,000 hours.
Many online retailers make wild claims of up to 100,000 hours, this is highly unlikely without a significant decrease in brightness or failed LED Emitters unless Constant Current Electronics is used.
Advantages:
- Uniform colour and brightness
- Longer distances between Colour Drivers and Controllers without the small voltage drop affecting the brightness and colour
- Reliable
- Long Lifetime
This is proven technology and we have already been supplying it to our installers for quite some time.
Each length includes a 1M flying lead for easy connection to a colour controller.
You will also need a Power Supply, shown below.

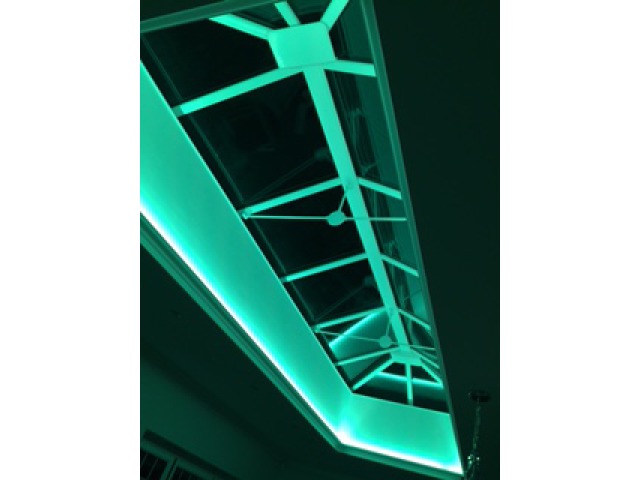

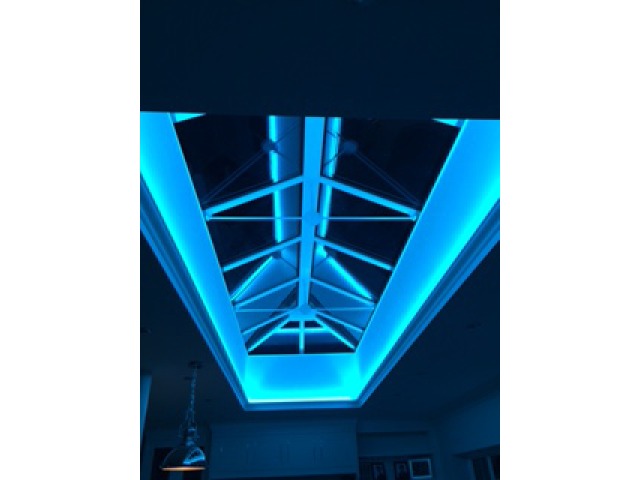

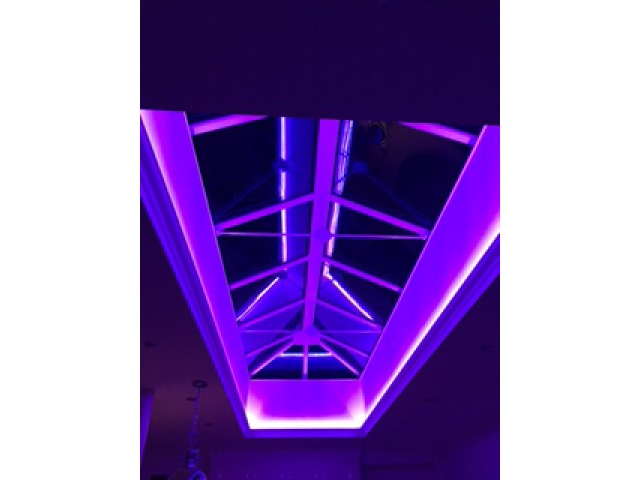

Should you require LED Strips pre-made to fit to your kitchen, rood lights, alcoves or coving, we can supply a system made to your exact requirements, with wires pre-fitted saving you time & money. Corners and room size are no problem Free Quote
Product Specification
Working Voltage Range | 24vdc |
LED Type | SMD 5050 Triple Chip |
Brand | Litewave® |
Tech | On-Board Constant Current Drivers |
LED Brand | Epistar (BIN#) with PLC Completion |
Brightness per Metre | ~350Lm |
Current per Meter | 473mA |
Power Draw per Meter | 11.35 Watts |
Light Dispersion | 120-140 ° |
Width of LED Strip | 10mm |

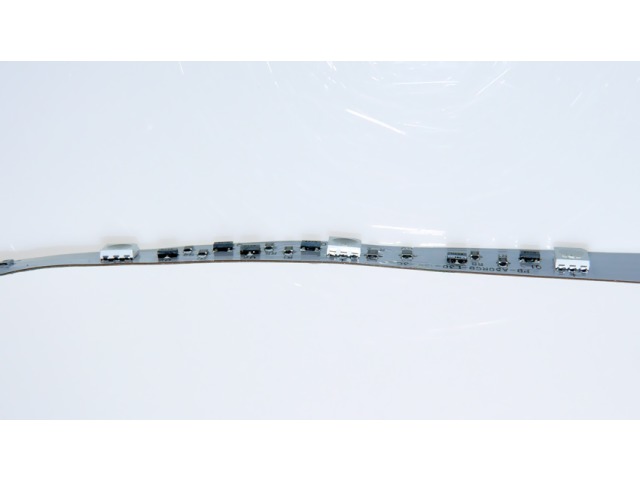

Depth of LED Strip | 2.2mm |
Lengths available | 1 to 6M |
Lifetime | >75,000 hours |
LEDs per Meter | 30 |
Cutting Points | 165mm |
Certifications | CE, RoHS |
IP Rating | IP20 (Non Waterproof) |
Warranty | 6 Years |
