Mini LED Screw Lights - Pack (10)

Product Code: MiLEDSL

£17.00 inc VAT (£14.17 ex VAT)

Stock Level: In-Stock

Select Colour
Quantity :

Automatic Quantity Discount

Towards the bottom of the page you will find a selection of suitable Power Supplies (Transformers), these are needed to run the LED Lights from the mains or a light switch.

View accessories for this product View Documents


Product Description

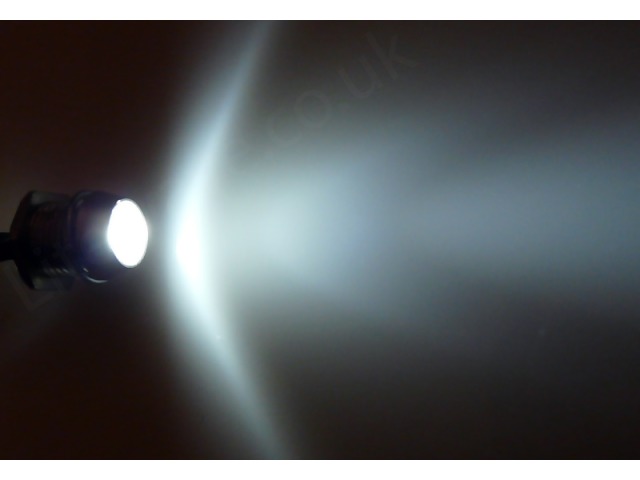

Mini LED Screw Lights are ideal for where a narrow spot of light is required either to highlight an object or for effect.

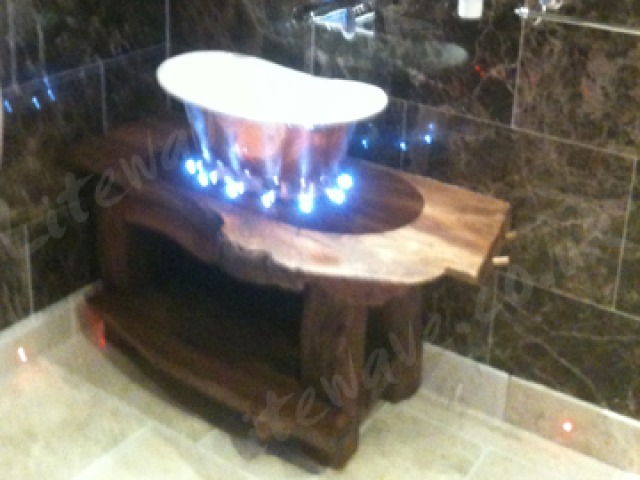

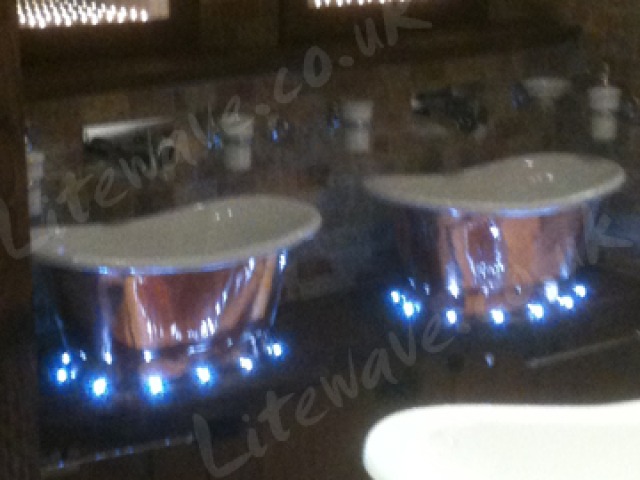

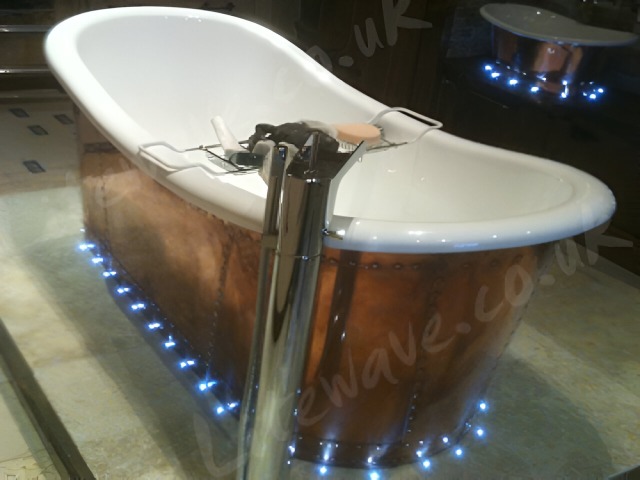

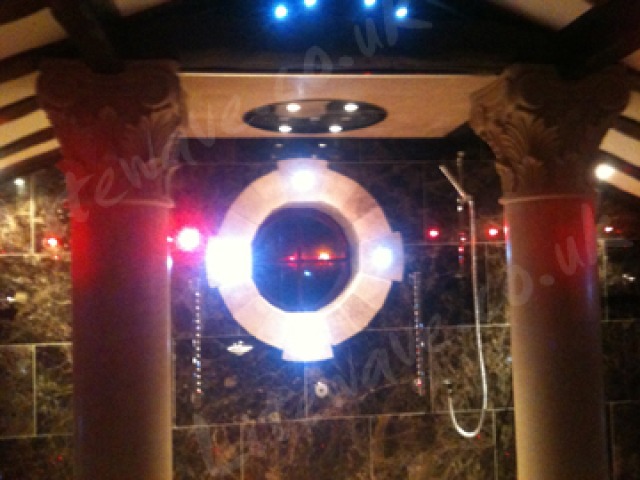

Use in places such as railings, ceilings, steps and stairs.

It is possible to use the Mini LED Screw Lights anywhere a bolt can be fitted, just drill a hole and fix them into place using the screw thread and nuts and washers supplied, tighten with a small spanner, then connect the two wires and power them up.

They use very little power just 0.25 watts per Mini Screw Light!

Each Mini Screw Light is fitted with a Superbright LED and an in-line resistor allowing for direct connection to 12vdc.

They can be used with any 12v dc power supply (Transformer), Vehicle Battery (via a fuse on the + terminal), and can even be powered from a 9v PP3 (Smoke Alarm) battery.

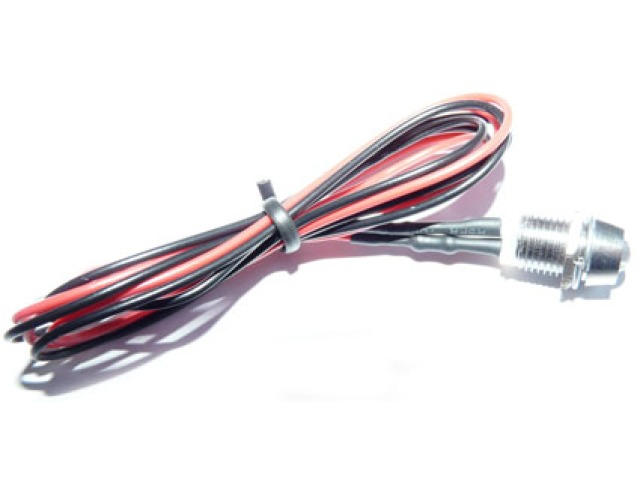

There is approximately 90cm of wire on each Screw Light.

Choice of 8 colours:

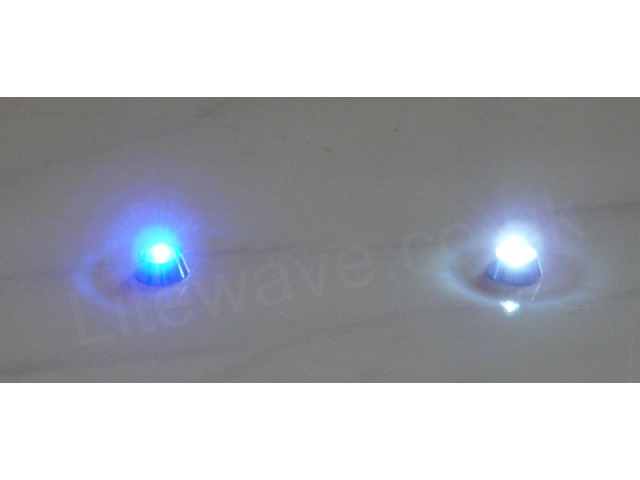

  • Blue
  • Red
  • White

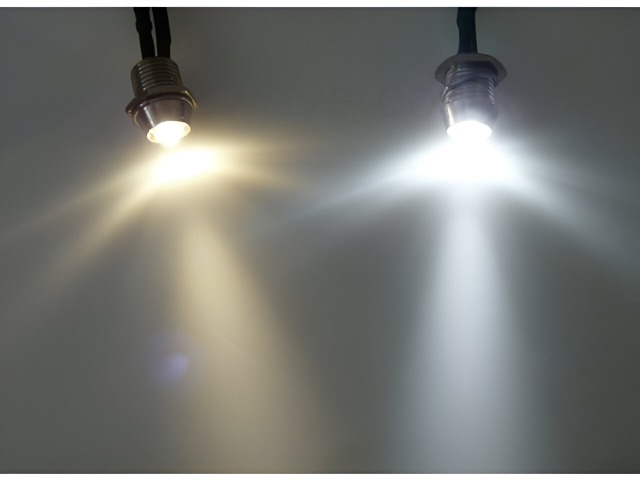

  • Warm White (Halogen White)
  • Green

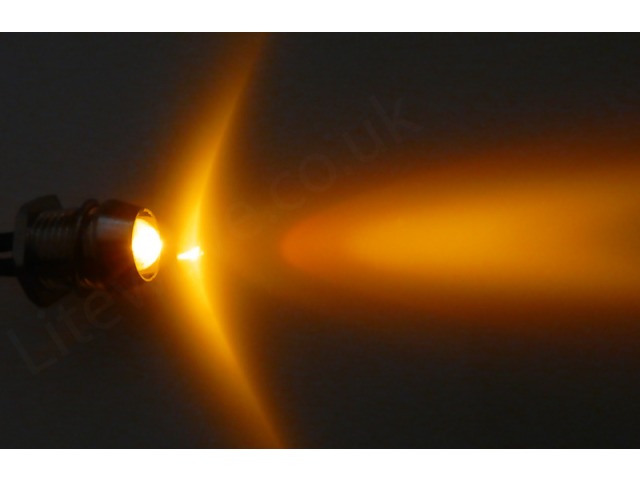

  • Yellow/Amber
  • Pink
  • Purple

10 Mini LED Screw Lights of the same colour are supplied in a pack, making them one of the lowest cost LED products available in the U.K.

The 2A Plug-top 12vdc Power Supply (Plugs into mains socket) it will power up to 80 Mini LED Screw Lights. (Available below)

Or if you need the Mini LED Screw Lights to be switched on and off via a wall switch then the 1A is recommended (powers up to 40 Mini LED Screw Lights) or 2A In-Line Power Supply is recommended (powers up to 80 Mini LED Screw Lights). (Available below)

The Mini Screw Lights are Dimmable if used with a 12vdc Dimmer.

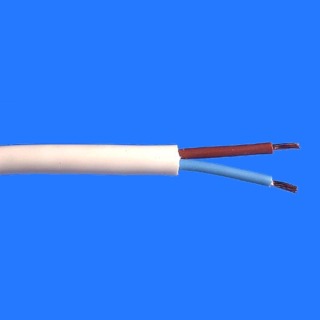

Twin Core (3A) Mains Cable (White) can be used to extend the wire to the Mini LED Screw Lights from the 12v output of the Power Supply or use between the Screw Lights. (Available below)

PLEASE NOTE: The LED with wire is supplied with the the Nickel Bezel but is not fitted into the Bezel, this can make installation easier.

Gallery

Product Specification

LED TypeHigh Intensity 5mm Dome LED
Voltage12vdc
Current20ma per LED Screw Light
Power Consumption0.24w each
Lifetime30,000+ Hours
Light Output mcd / IF=20mARed 4,000 mcd
Green - 20,000 mcd
Blue - 6,000 mcd
Yellow - 6,000 mcd
Pink - 800 mcd
UV/Purple - 100 mcd
White - 25,000 mcd
Warm White - 19,000 mcd
Length of Wire pre-fitted90cm
ConstructionNickel / Stainless Steel - Non-Rust
Thread Diameter7.5mm
Bezel Diameter9mm
Body Length8.5mm
Overall Length12.5mm
CertificationsCE, RoHS
